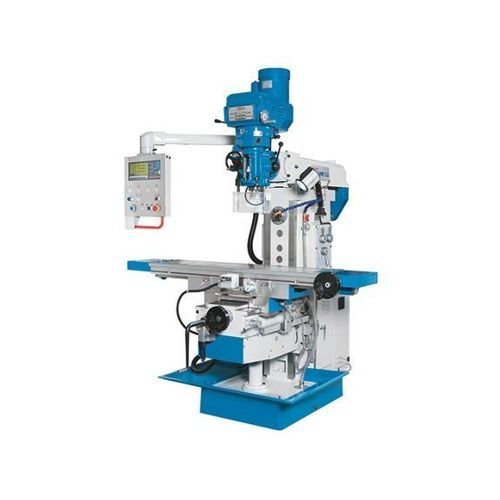

3轴铣床 VHF 3.2

通用旋转主轴电机伺服

Overview
这款多功能万能铣床补充了 VHF 系列经过验证的顶级机型。横向主轴、可旋转的立式铣头和大型夹紧工作台相结合，配合扩大的转速范围和无级可变的伺服进给，扩展了 VHF 系列的广泛应用范围。凭借丰富的标准配置，该型号同样适用于修理车间的铣削加工以及培训和生产部门。

Highlights

• 带自动主轴进给的可旋转刀头
• 带独立驱动的横向主轴
• 可旋转的铣床工作台
• 所有轴采用伺服电机实现无级可变进给
• 丰富的标准配置

Technical tables
Working area
Table set up area — 1.370 mm x 320 mm
Table load capacity (max.) — 300 kg
Table swivel range r/l — 45 deg
Number of T-slots — 3 positions
T-slot (width x spacing) — 14 mm x 80 mm

Travels
Travel X-axis — 1.000 mm
Travel Y-axis — 360 mm
Travel Z-axis — 400 mm

Vertical milling head
Spindle mount (vertical) — SK 40 DIN 2080
Throat — 178 mm - 868 mm
Vertical spindle-to-table surface distance — 160 mm - 560 mm
Milling head swivel range — 90 deg
Cutter head tilt angle — 45 deg
Spindle speed (infinitely variable) (L) — 70 1/min - 450 1/min
Spindle speed (infinitely variable) (H) — 450 1/min - 3.600 1/min

Rapid feed
Rapid feed X- / Y-axis — 1.335 mm/min
Rapid feed Z-axis — 1.000 mm/min

Horizontal milling head
Spindle speeds — 35 1/min - 1.500 1/min
Spindle mount — SK 40 DIN 2080
Horizontal spindle-to-table surface distance — 75 mm - 475 mm

Feed
Feed speed X-axis — 30 mm/min - 830 mm/min
Feed speed Y-axis — 30 mm/min - 830 mm/min
Feed speed Z-axis — 23 mm/min - 625 mm/min

Drive capacity
Main drive motor rating (vertical) — 3,7 kW
Main drive motor rating (horizontal) — 3 kW

Measures and weights
Overall dimensions (length x width x height) — 1,9 m x 1,75 m x 2,35 m
Weight — 1.950 kg

Product details

• 高强度 HT-200 铸铁肋条加固的高刚性床身
• 硬化研磨齿轮的精密主轴齿轮，运转安静
• 铣床工作台具有大型装夹面积，可沿纵向旋转
• 刀头主轴套筒具备3级自动进给和自动深度停止，也可手动移动
• 用于斜孔加工，立式刀头可向两方向旋转：左右 ±90°；前后倾斜 ±45°
• 立式刀头主轴转速在宽范围内无级可变；辅助齿轮箱确保强劲扭矩
• 立式与卧式主轴各自独立驱动
• 标准外部支撑带青铜滑动轴承，可在卧式主轴上装配长刀轴
• 强劲伺服电机允许三轴进给的无级变速
• 工作台快速定位和各轴快速进给将停机时间降至最低
• 控制面板可旋转，操作更舒适
• 标配冷却系统和切屑盘

Technical specifications

• Model: VHF 3.2
• Table set up area: 1.370 mm x 320 mm
• Table load capacity (max.): 300 kg
• Travel X / Y / Z: 1.000 mm / 360 mm / 400 mm
• Vertical spindle: SK 40 DIN 2080, speed range L 70–450 1/min, H 450–3.600 1/min
• Horizontal spindle: SK 40 DIN 2080, speed range 35–1.500 1/min
• Rapid feed X/Y: 1.335 mm/min; Z: 1.000 mm/min
• Feed speeds X/Y/Z: 30–830 / 30–830 / 23–625 mm/min
• Main drive motors: vertical 3.7 kW, horizontal 3 kW
• Table swivel: ±45°; Milling head swivel: 90°; Cutter tilt: ±45°
• Overall dimensions (L×W×H): 1,9 m x 1,75 m x 2,35 m
• Weight: 1.950 kg
