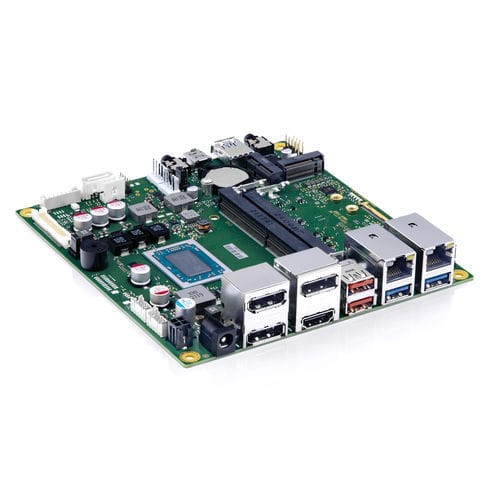

Mini-ITX主板 D3714 series

Mini-STX嵌入式AMD Ryzen™

Industrial Motherboard supporting the AMD Ryzen™ Embedded V1000/R1000 Series SoCAMD Radeon™ Vega Graphics (within SoC)Up to 3x DisplayPort V1.4 plus HDMI V2.0bDual Channel LVDS (24 Bit) and eDP V1.3 (4k) onboardDesigned for Fanless OperationM.2 Key-M (SSD) and Key-E (WLAN/BT) supportedThe industrial motherboard D3714-V/R mSTX supports the AMD Ryzen™ Embedded V1000 and R1000 series processors with integrated AMD Radeon™ Vega Graphics and can be used in applications with high graphical requirements like casino gaming, medical displays, thin clients and ultra small industrial PCs. It is equipped with up to three DisplayPorts, one HDMI Port, one embedded DisplayPort and one Dual-Channel LVDS (24bit) and powers up to four independent displays in 4K resolution. Depending on the requirements for (graphical) performance, there are 3 motherboard versions available.Looking for a mini-ITX motherboard that supports the same AMD RYZEN™ Embedded V1000/R1000 processors? Discover the D3713-V/R mITX sibling now!Benefits of Kontron motherboards:Highest quality through German engineering and productionStrict lifecycle management and reliable product maintenanceComprehensive feature and tool setExcellent technical supportBeneficial total-cost-of-ownershipSpecificationsProcessor: AMD Embedded V1605B SoC, AMD Embedded R1102G SoC, AMD Embedded R1305G SoCChipset: SoCMain Memory: 2x DDR4 2400 SDRAM up to 32 GbyteGraphics Controller: Integrated AMD Radeon™ Vega GraphicsDisplay: Up to 3x DPP V1.4 incl. DP++ support, 1x HDMI V2.0b, 1x embedded DP (eDP V1.4; supporting 4K resolutions; shared with DPP1), 1x Dual-Channel 24bit LVDS (shared with HDMI)Max. display combinations:D3714-V2: 2x DPP + 1x LVDS + 1x eDP, 3x DPP + 1x LVDS, 2x DPP + 1x HDMI + 1x eDP, 3x DPP + 1x HDMID3714-R2: 1x DPP + 1x LVDS + 1x eDP, 2x DPP + 1x LVDS, 1x DPP + 1x HDMI + 1x eDP, 2x DPP + 1x HDMID3714-R1: 1x LVDS + 1x eDP, 1x DPP + 1x LVDS, 1x HDMI + 1x eDP, 1x DPP + 1x HDMIAudio Controller: Realtek ALC256Audio: 5.1-channel, High Definition Audio CodecEthernet: Intel® i210 & Realtek RTL8111H with 10/100/1000 MBit/sUSB: 2x USB 2.0 (by header), 2x USB 3.2 Gen1 (rear), 2x USB 3.2 Gen2 (rear), 1x USB 3.2 Gen1 (front), 1x USB 3.2 Gen1 (Type C, front)Serial: 1x RS232 (by header); 1x RS232/422/485 (by header)Available I/Os: GPIO (by header)SATA: 1x Serial ATA III 600 Interface (up to 6GBit/s), NCQ, AHCIExpansion: 1x M.2 PCIe x4 (Key-M: 2230/2242/2280), 1x M.2 WLAN/Bluetooth (Key-E: 2230, supports PCIe x1/Gen3 + USB 2.0)Power connector: External/Internal DC-In (DC Jack/4-Pin Micro-Fit)Input Voltage: DC Input 12 V or 19-28 V, max. 5 A/65 W (external DC-In), max. 8 A/100 W (internal DC-In)BIOS: AMI Aptio 5.x (UEFI) BIOSWatchdog: 3 level HW Watchdog (BIOS POST/BIOS Boot/OS)Real Time Clock: IntegratedCooling: D3714-V2: 2x PWM fan (CPU/System); D3714-Rx: 1x PWM fan (CPU)Operating System: MS Windows 10, Linux-64Mechanical Dimensions: Mini-STX: 5.5“ x 5.8“ (140 x 148 mm)Operating Temperature: -10 °C – 60 °CHumidity: 5%-85%Certifications: CE Class-B, FCC-B verified, cTÜVus acc. IEC62368-1Accessories (selection):SMARTCASE™ S511: IPC mini-STX Chassis, non brandedActive Cooler AMD FP5 35W: Low height 35W active cooler for Mini-ITX Ryzen Motherboard + Backplate for FP5Passive Cooler AMD 10W: Passive cooler for Mini-STX Ryzen Motherboard + Backplate for FP5AC Adapter: 19V / 3.42A, 65W - w/o power cordDrivePowerCable: Drive Power Cable for SATA HDD and SATA slimline DVD (length 200 + 200 mm)COM Cable short w/o bracket: w/o slot bracket, length = 120mm; new 2mm pitch internal connectorCOM Cable "long": with fullsize slot bracketWLAN Kit for SMARTCASE™ S511: left (grey)/right (black) Antenna (incl. cable) to be fitted into mSTX chassisWall Mount Bracket for SMARTCASE™ S511: 2x Bracket per chassis incl. screwsVESA mount SMARTCASE™ S511: "E-Line bracket"DC-In Holder for SMARTCASE™ S511: Holder incl. screwsDP 20P M to HDMI Adapter: DP 20P M to HDMI Adapter, up to 4k @ 60 HzM.2 Dual SATA Module: M.2 Dual SATA ModuleTechnical Features / SpecificationsAMD Ryzen™ Embedded V1000/R1000 Series SoC supportIntegrated AMD Radeon™ Vega GraphicsUp to 4 independent 4K displaysFanless operation designMultiple expansion and connectivity options (M.2, SATA, USB, Serial, GPIO)Wide input voltage range (12V or 19-28V)Industrial temperature and humidity rangeCE, FCC, cTÜVus certifications
