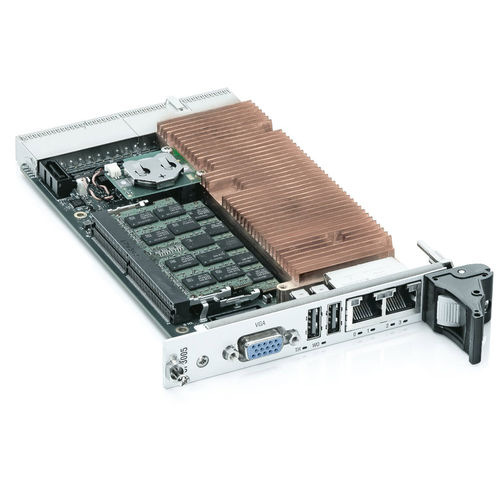

CompactPCICPU卡 CP3005-SA

第八代Generation Intel® Core™第九代Generation Intel® Core™3U

CP3005-SA — 8th/9th Gen Intel® Core™ and Xeon® 3U CompactPCI CPU Board

Résumé des points clés

• More performance-per-watt with up to 6 cores
• Long term programs: 10 years or more
• Expansions for I/O, storage, XMC, M.2 flash
• Rugged VITA47 EAC3, extended temperature

Domaines d'application

• For Industrial Control, Defense, Oil & Gas, Mining, Transportation

Performance et fonctionnalités principales

• Performance-per-watt: Intel® Core™ i7, i5, i3 and Intel® Xeon® versions up to 6 cores
• 4K video experience: Intel® UHD Graphics 630, DirectX® 12 and OpenGL 4.5 support
• Revolutionary flash capacities: 30 – 512 GByte M.2 SATA flash (suitable for mass storage); additional M.2 flash on 8HP extension up to 1 Terabyte
• Memory bandwidth: 32/16/8 GByte dual-channel up to 2666 DDR4 speeds; ECC option
• Connectivity: USB 3.0; SATA 6 Gbit/s; PCI Express®; 3x Gbit Ethernet with Wake-on-LAN
• Variety of expansions: Mezzanines for 2.5” HDD/SSD; XMC; second M.2 SATA module; Rear I/O backward compatible
• Robustness: Temperature option -40 °C up to +70 °C; Designed for VITA47 EAC3
• Security: Hardware based encryption; TPM 2.0
• Long lifetime: 10 years lifetime or more; Kontron commitment to CompactPCI portfolio

Détails (extraits des tables spécifications)
Processor
8th Generation Intel® processor (14nm technology): - Intel® Xeon® E-2176M, 6-Core, 2.7 GHz (base), 4.4 GHz (max), with ECC, 12 MByte Cache - Intel® Core™ i5-8400H, 4-Core, 2.5 GHz (base), 4.2 GHz (max), no ECC, 8 MByte Cache

Graphics
Intel® UHD Graphics P630 integrated - up to 3x independent graphics outputs - Supports DirectX® 12 and OpenGL 4.5 - Maximum resolutions: DisplayPort: 4096 x 2304 pixels @ 60 Hz (VGA entries listed as tbd)

Watchdog
FPGA-based, timeout ranging from 125 ms to 4096 s programmable in 16 steps, IRQ, reset, dual-stage configuration

Ethernet
Intel® i210 and i219LM Ethernet controller: Up to three 1000BASE-T interfaces, two front/rear switchable with WOL (Wake-on-LAN), third available via 8HP extension CP3005-HDD

Main Memory
Up to 32 GByte dual channel DDR4 SDRAM at 2400 MT/s, via two SODIMM sockets, ECC support by Intel® Xeon® only

Caractéristiques / spécifications techniques

• Modèle: CP3005-SA
• Marque: Kontron
• Processeurs supportés: Intel® Xeon® (ex. E-2176M, 6 cores) et Intel® Core™ i7/i5/i3 (jusqu'à 6 cœurs selon SKU)
• Fréquences exemples: Xeon® E-2176M 2.7 GHz (base) / 4.4 GHz (turbo); Core™ i5-8400H 2.5 GHz (base) / 4.2 GHz (turbo)
• Cache: jusqu'à 12 MByte (Xeon®)
• Graphismes intégrés: Intel® UHD Graphics P630; support jusqu'à 3 sorties indépendantes; DisplayPort 4096 x 2304 @60Hz
• Mémoire principale: jusqu'à 32 GB DDR4 dual-channel via 2 SODIMM; ECC disponible pour Xeon®
• Stockage flash: M.2 SATA 30–512 GB intégré, extension M.2 via 8HP jusqu'à 1 TB
• Interfaces: USB 3.0, SATA 6 Gbit/s, PCI Express®, 3x Gigabit Ethernet (i210/i219LM), Wake-on-LAN
• Watchdog: FPGA-based, 125 ms–4096 s, programmable
• Extensions: XMC, mezzanines pour 2.5" HDD/SSD, Rear I/O (backward compatible)
• Robustesse / Température: options jusqu'à -40 °C à +70 °C; conçu pour VITA47 EAC3
• Sécurité: Hardware encryption; TPM 2.0
• Durée de vie: programmes long terme 10 ans ou plus
• Conception: 3U CompactPCI CPU board
