隔离变压器 DYN11 K13 AL IP21

干式用于室内服务IEC

简要说明

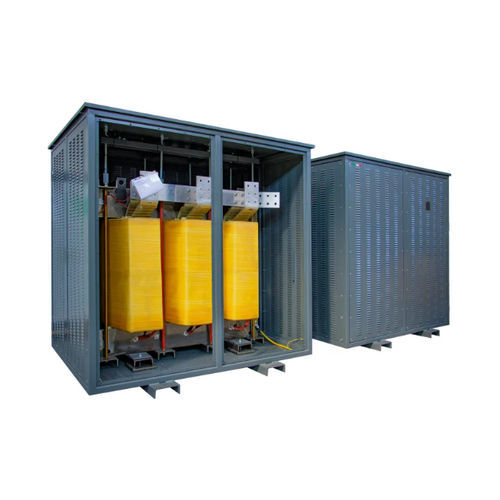

Ortea Next的DYN11 K13 AL IP21是一款低压隔离变压器，针对含谐波较多的工业负载而设计。它在一次与二次电路之间提供栅极隔离，并配备接地的静电屏蔽以减少干扰并提高安全性。

产品类型
低压隔离变压器

型号 / 变体
Part number: DYN11 K13 AL IP21 30 | Power: 30 kVA | In-rush current: 24 A | No-load losses: 350 W | Load losses: 850 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 40 | Power: 40 kVA | In-rush current: 15 A | No-load losses: 410 W | Load losses: 1000 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 50 | Power: 50 kVA | In-rush current: 15 A | No-load losses: 450 W | Load losses: 1080 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 63 | Power: 63 kVA | In-rush current: 15 A | No-load losses: 630 W | Load losses: 1150 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 70 | Power: 70 kVA | In-rush current: 15 A | No-load losses: 680 W | Load losses: 1210 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 80 | Power: 80 kVA | In-rush current: 15 A | No-load losses: 740 W | Load losses: 1320 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 90 | Power: 90 kVA | In-rush current: 13 A | No-load losses: 780 W | Load losses: 1380 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 100 | Power: 100 kVA | In-rush current: 13 A | No-load losses: 870 W | Load losses: 1520 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 110 | Power: 110 kVA | In-rush current: 13 A | No-load losses: 920 W | Load losses: 1640 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 125 | Power: 125 kVA | In-rush current: 13 A | No-load losses: 960 W | Load losses: 1880 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 140 | Power: 140 kVA | In-rush current: 12 A | No-load losses: 1100 W | Load losses: 1980 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 160 | Power: 160 kVA | In-rush current: 11 A | No-load losses: 1200 W | Load losses: 2120 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 180 | Power: 180 kVA | In-rush current: 11 A | No-load losses: 1290 W | Load losses: 2280 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 200 | Power: 200 kVA | In-rush current: 10 A | No-load losses: 1430 W | Load losses: 2420 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 225 | Power: 225 kVA | In-rush current: 10 A | No-load losses: 1470 W | Load losses: 2620 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 250 | Power: 250 kVA | In-rush current: 10 A | No-load losses: 1620 W | Load losses: 2850 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 280 | Power: 280 kVA | In-rush current: 10 A | No-load losses: 1730 W | Load losses: 3180 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 315 | Power: 315 kVA | In-rush current: 9 A | No-load losses: 1890 W | Load losses: 3600 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 350 | Power: 350 kVA | In-rush current: 9 A | No-load losses: 2100 W | Load losses: 4100 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 400 | Power: 400 kVA | In-rush current: 9 A | No-load losses: 2250 W | Load losses: 4530 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 500 | Power: 500 kVA | In-rush current: 8 A | No-load losses: 2780 W | Load losses: 5250 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 630 | Power: 630 kVA | In-rush current: 7 A | No-load losses: 3000 W | Load losses: 6180 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 800 | Power: 800 kVA | In-rush current: 6 A | No-load losses: 4050 W | Load losses: 7180 W | Vcc %: 4.5
Part number: DYN11 K13 AL IP21 1000 | Power: 1000 kVA | In-rush current: 6 A | No-load losses: 4950 W | Load losses: 8450 W | Vcc %: 4.5
Part number: DYN11 K13 AL IP21 1250 | Power: 1250 kVA | In-rush current: 5 A | No-load losses: 6200 W | Load losses: 10400 W | Vcc %: 5
Part number: DYN11 K13 AL IP21 1600 | Power: 1600 kVA | In-rush current: 5 A | No-load losses: 7600 W | Load losses: 12250 W | Vcc %: 5 | Data Sheet: available

技术规格（节选）

• 频率：50 Hz
• K因子：13
• 输入 / 输出电压：400 / 400 V
• 一次绕组连接：三角形
• 二次绕组连接：星形 + 中性线
• 矢量组：Dyn11
• 铁芯材料：M270 磁性钢
• 绕组材料：铝
• 一次与二次之间的静电屏蔽，接地
• 最大环境温度：40 °C
• 绝缘等级 / 热等级：H
• 绝缘水平：3
• 温升：125
• 最大海拔：1000 m
• 环境 - 气候 - 防火等级：E1 - C1 - F0
• 安装：室内
• 防护等级：IP21
• 参考标准：EN 60076 / IEC 61558（适用时）
