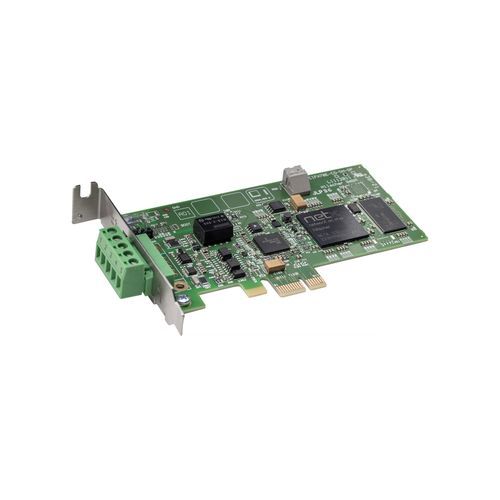

PCI Express通信卡 / 数字 CIFX 70E-DNDMA
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 所用技术
- 数字, DMA
产品介绍
概述 cifX PC卡系列是支持基于PC的自动化环境中所有实时以太网和现场总线系统的统一标准。协议栈在PC卡上独立运行，过程数据通过双端口内存（DPM）或DMA（直接内存访问）与主机交换。由于采用统一的Hilscher平台策略，所有PC卡在协议和卡型式上均使用相同的驱动和工具。Hilscher netX技术使得在单一硬件上实现所有实时以太网协议成为可能；可通过加载不同固件更改通信协议。产品提供多种硬件选项，如不同电缆长度、M-12接头、额外NVRAM、扩展温度范围、双通道卡或分离式网络接口，以及多种设备驱动和免费的C-Toolkit。
要点
描述 CIFX 70E-DN 是一款低高度 PCI Express PC 卡，为基于 PC 的自动化提供 DeviceNet 通信（主站或从站）。该卡自主执行协议栈，并通过 DPM 或 DMA 与主机交换过程数据。它共享 Hilscher 的通用平台和驱动，支持通过固件切换协议并提供满足不同应用需求的灵活硬件选项。
支持的协议
技术数据（关键项目） Product name: CIFX 70E-DN
Part number: 1259.510
Brief description: PC Card cifX Low Profile PCI Express DeviceNet Master or Slave
Function: Communication interface with PCI Express and DeviceNet interface
Communication controller (type): netX 100
Integrated RAM: 8 MB SDRAM
Integrated FLASH: 4 MB serial Flash EPROM
Supply voltage: +3.3 V DC ±5 %
Maximum current (typ.): 800 mA (at 3.3 V)
Connector (power/system): via PCI Express Bus
Bus type: PCI Express, One Lane Port
Data access: DPM or DMA (Direct Memory Access)
Dual-port memory size: 64 KB
Data width: 32 bit
Transmission rate: 2 GBit/s
Communication standard: DeviceNet
Interface type: ISO-11898 according to DeviceNet specification, optically isolated
Device connector (field): COMBICON, male, 5-pin
Isolation voltage: 1000 V DC (tested for 1 minute)
Displays / LEDs: SYS (system status), MNS (Module Network Status duo LED)
Operating element: Rotary switch slot number (card ID) to set the slot number (card ID)
Operating temperature range: 0 °C ... +65 °C (air flow during measurement: 0.5 m/s)
Storage temperature range: -40 °C ... +85 °C
Humidity: 10 % … 95 % relative humidity, no condensation permitted
Environment note: For UL compliant usage: The device must be used in a pollution degree 2 environment.
Altitude: 0 m … 2000 m
Dimensions (L x W x H): 119 mm x 69 mm x 18.5 mm
Configuration software (master & slave): SYCON.net
Configuration software (slave): netX Configuration Tool
Conformity RoHS: Yes
UL certification: The device is certified according to UL 508, UL-File-Nr. E221530
EMC / CE / UKCA: CE sign: Yes; UKCA sign: Yes; Emission standard: EN 55011; Immunity: EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2 (for industrial environments)
要点
- 通用 DeviceNet PC 卡（主站或从站）
- 所有协议和卡型式采用统一用户界面
- 大量驱动可简化集成
- 通过双端口内存或直接内存访问进行数据访问
- 唯一插槽号，通过旋转开关分配
- 工作温度可扩展至最高 65 °C
描述 CIFX 70E-DN 是一款低高度 PCI Express PC 卡，为基于 PC 的自动化提供 DeviceNet 通信（主站或从站）。该卡自主执行协议栈，并通过 DPM 或 DMA 与主机交换过程数据。它共享 Hilscher 的通用平台和驱动，支持通过固件切换协议并提供满足不同应用需求的灵活硬件选项。
支持的协议
- DeviceNet Master
- DeviceNet Slave
技术数据（关键项目） Product name: CIFX 70E-DN
Part number: 1259.510
Brief description: PC Card cifX Low Profile PCI Express DeviceNet Master or Slave
Function: Communication interface with PCI Express and DeviceNet interface
Communication controller (type): netX 100
Integrated RAM: 8 MB SDRAM
Integrated FLASH: 4 MB serial Flash EPROM
Supply voltage: +3.3 V DC ±5 %
Maximum current (typ.): 800 mA (at 3.3 V)
Connector (power/system): via PCI Express Bus
Bus type: PCI Express, One Lane Port
Data access: DPM or DMA (Direct Memory Access)
Dual-port memory size: 64 KB
Data width: 32 bit
Transmission rate: 2 GBit/s
Communication standard: DeviceNet
Interface type: ISO-11898 according to DeviceNet specification, optically isolated
Device connector (field): COMBICON, male, 5-pin
Isolation voltage: 1000 V DC (tested for 1 minute)
Displays / LEDs: SYS (system status), MNS (Module Network Status duo LED)
Operating element: Rotary switch slot number (card ID) to set the slot number (card ID)
Operating temperature range: 0 °C ... +65 °C (air flow during measurement: 0.5 m/s)
Storage temperature range: -40 °C ... +85 °C
Humidity: 10 % … 95 % relative humidity, no condensation permitted
Environment note: For UL compliant usage: The device must be used in a pollution degree 2 environment.
Altitude: 0 m … 2000 m
Dimensions (L x W x H): 119 mm x 69 mm x 18.5 mm
Configuration software (master & slave): SYCON.net
Configuration software (slave): netX Configuration Tool
Conformity RoHS: Yes
UL certification: The device is certified according to UL 508, UL-File-Nr. E221530
EMC / CE / UKCA: CE sign: Yes; UKCA sign: Yes; Emission standard: EN 55011; Immunity: EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2 (for industrial environments)
