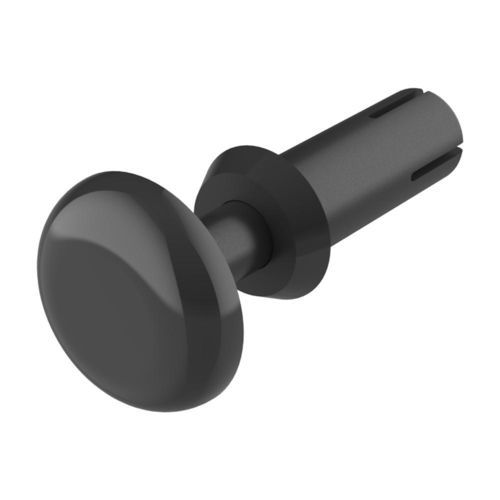

大头铆钉 MRMHM尼龙塑料黑色
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 铆钉头
- 大头
- 材料
- 尼龙
- 钉杆材质
- 塑料
- 颜色
- 黑色, 白色
- 其他特性
- 伸缩
- 钉身直径
最多: 6.1 mm
(0.24 in)最少: 1.9 mm
(0.07 in)- 压接厚度(最小/最大)
最多: 25.5 mm
(1 in)最少: 0.6 mm
(0.02 in)- 长度
最多: 28.5 mm
(1.12 in)最少: 2.29 mm
(0.09 in)- 钉头直径
最多: 12.1 mm
(0.48 in)最少: 3.7 mm
(0.15 in)- 机头厚度
最多: 3 mm
(0.12 in)最少: 0.7 mm
(0.03 in)
产品介绍
产品描述
MRMHM 快装铆钉用于需要快速推入式装配的场合。可免工具安装：将其置于孔中并按压。加大头部便于插入，腿部展开以永久锁定面板或组件。
组合与特性
部分铆钉可提供以下组合与特性：
认证与合规
RoHS：符合
UL94：V2 - V0
IP：未注明
尺寸
尺寸单位：毫米
文件与媒体
图纸：提供 PDF（产品图纸可用）。
视频：提供产品演示视频。
规格表（参考 | 孔径 | 面板厚度 | D | L | H | d | 类型）
Reference | Hole size | Panel thickness | D | L | H | d | Type
00100300537 | 2,10 to 2,20 | 0,60 to 1,20 | 4,20 | 2,29 | 1,20 | 1,90 | 1
01300100530 | 2,10 to 2,20 | 0,60 to 1,20 | 4,20 | 2,40 | 1,20 | 2,00 | 1
01300100531 | 2,10 to 2,20 | 1,30 to 2,00 | 4,20 | 3,20 | 1,20 | 2,00 | 1
00100300538 | 2,10 to 2,20 | 1,30 to 2,00 | 4,20 | 3,30 | 1,20 | 1,90 | 1
00100300539 | 2,10 to 2,20 | 2,10 to 2,80 | 4,15 | 4,10 | 1,20 | 2,00 | 1
01300100532 | 2,10 to 2,20 | 2,10 to 2,80 | 4,20 | 4,00 | 1,20 | 2,00 | 1
01300100533 | 2,10 to 2,20 | 2,90 to 3,60 | 4,20 | 4,80 | 1,20 | 2,00 | 1
00100300540 | 2,10 to 2,20 | 2,90 to 3,60 | 4,20 | 4,83 | 1,20 | 1,90 | 1
01300100534 | 2,10 to 2,20 | 3,70 to 4,40 | 4,20 | 5,60 | 1,20 | 2,00 | 1
00100300597 | 2,10 to 2,20 | 3,80 to 4,80 | 4,20 | 5,60 | 1,20 | 1,90 | 1
00100300541 | 2,10 to 2,20 | 4,40 to 5,00 | 4,20 | 6,35 | 1,20 | 1,90 | 1
01300100535 | 2,10 to 2,20 | 4,40 to 5,20 | 4,20 | 6,40 | 1,20 | 2,00 | 1
00100300730 | 2,11 to 2,21 | 5,21 to 5,72 | 4,19 | 7,50 | 1,20 | 1,93 | 1
00100300542 | 2,60 to 2,70 | 1,00 to 2,00 | 5,00 | 3,30 | 1,40 | 2,50 | 1
00100300543 | 2,60 to 2,70 | 2,70 to 3,60 | 5,00 | 4,83 | 1,40 | 2,50 | 1
00100300544 | 2,60 to 2,70 | 3,40 to 4,30 | 3,70 | 5,60 | 0,70 | 2,50 | 1
00100300591 | 2,60 to 2,70 | 3,60 to 5,00 | 5,00 | 6,30 | 1,40 | 2,50 | 1
00100300592 | 2,60 to 2,70 | 4,30 to 5,80 | 5,00 | 7,10 | 1,40 | 2,50 | 1
01300100536 | 2,70 to 2,80 | 1,00 to 2,00 | 5,00 | 3,20 | 1,40 | 2,60 | 1
01300100537 | 2,70 to 2,80 | 2,00 to 3,00 | 5,00 | 4,20 | 1,40 | 2,60 | 1
03500100998 | 2,70 to 2,80 | 2,00 to 3,00 | 5,00 | 4,20 | 1,40 | 2,60 | 1
00100300276 | 2,70 to 2,80 | 2,00 to 3,00 | 5,10 | 4,30 | 1,70 | 2,60 | 2
01300100538 | 2,70 to 2,80 | 2,70 to 3,60 | 5,00 | 4,80 | 1,40 | 2,60 | 1
00100300530 | 2,70 to 2,80 | 3,10 to 3,90 | 5,20 | 5,20 | 1,60 | 2,65 | 2
01300100539 | 2,70 to 2,80 | 3,40 to 4,30 | 5,00 | 5,50 | 1,40 | 2,60 | 1
01300100540 | 2,70 to 2,80 | 4,30 to 5,20 | 5,00 | 6,40 | 1,40 | 2,60 | 1
01300100541 | 2,70 to 2,80 | 5,10 to 6,00 | 5,00 | 7,20 | 1,40 | 2,60 | 1
00100300593 | 3,00 to 3,20 | 5,00 to 6,00 | 6,40 | 7,60 | 1,60 | 3,00 | 1
01300100542 | 3,10 to 3,20 | 1,00 to 2,00 | 6,40 | 3,50 | 1,60 | 3,00 | 1
00100300271 | 3,10 to 3,20 | 1,30 to 2,50 | 6,40 | 3,50 | 1,60 | 3,00 | 2
00100300545 | 3,10 to 3,20 | 1,90 to 3,00 | 6,20 | 4,65 | 1,50 | 3,00 | 1
01300100543 | 3,10 to 3,20 | 2,00 to 3,00 | 6,40 | 4,50 | 1,60 | 3,00 | 1
00100300550 | 3,10 to 3,20 | 2,00 to 3,00 | 6,40 | 4,57 | 1,60 | 3,00 | 1
01300100544 | 3,10 to 3,20 | 2,50 to 3,50 | 6,40 | 5,00 | 1,60 | 3,00 | 1
01300100545 | 3,10 to 3,20 | 3,00 to 4,00 | 6,40 | 5,50 | 1,60 | 3,00 | 1
01300100546 | 3,10 to 3,20 | 4,00 to 5,00 | 6,40 | 6,50 | 1,60 | 3,00 | 1
00100300546 | 3,10 to 3,20 | 4,00 to 5,00 | 6,40 | 6,60 | 1,60 | 3,00 | 1
01300100547 | 3,10 to 3,20 | 5,00 to 6,00 | 6,40 | 7,50 | 1,60 | 3,00 | 1
00100300547 | 3,10 to 3,20 | 5,50 to 6,50 | 6,40 | 7,87 | 1,60 | 3,00 | 1
01300100548 | 3,10 to 3,20 | 5,50 to 6,50 | 6,40 | 8,00 | 1,60 | 3,00 | 1
00100300548 | 3,10 to 3,20 | 6,50 to 7,50 | 6,40 | 8,90 | 1,60 | 3,00 | 1
01300100549 | 3,10 to 3,20 | 6,50 to 7,50 | 6,40 | 9,00 | 1,60 | 3,00 | 1
00100300549 | 3,10 to 3,20 | 7,50 to 8,50 | 6,40 | 9,91 | 1,60 | 3,00 | 1
01300100550 | 3,10 to 3,20 | 7,50 to 8,50 | 6,40 | 10,00 | 1,60 | 3,00 | 1
00100300281 | 3,10 to 3,20 | 10,20 to 11,20 | 6,40 | 13,20 | 1,70 | 3,00 | 3
01300100551 | 3,10 to 3,20 | 11,50 to 13,00 | 6,40 | 14,50 | 1,60 | 3,00 | 1
01300100552 | 3,10 to 3,20 | 20,50 to 21,50 | 6,40 | 23,00 | 1,60 | 3,00 | 1
00100300272 | 3,20 to 3,30 | 3,00 to 4,00 | 6,30 | 5,50 | 1,60 | 3,00 | 1
00100300284 | 3,50 to 3,60 | 1,50 to 3,00 | 6,40 | 4,60 | 1,50 | 3,40 | 2
00100300277 | 3,50 to 3,60 | 3,00 to 4,00 | 6,40 | 5,60 | 1,50 | 3,40 | 2
01300100553 | 3,60 to 3,70 | 1,20 to 2,10 | 6,40 | 3,50 | 1,60 | 3,50 | 2
00100300551 | 3,60 to 3,70 | 1,20 to 2,10 | 6,40 | 3,56 | 1,60 | 3,40 | 2
00100300552 | 3,60 to 3,70 | 2,10 to 3,00 | 6,40 | 4,32 | 1,60 | 3,40 | 2
01300100554 | 3,60 to 3,70 | 2,10 to 3,00 | 6,40 | 4,50 | 1,60 | 3,50 | 2
01300100555 | 3,60 to 3,70 | 2,70 to 3,60 | 6,40 | 5,00 | 1,60 | 3,50 | 2
00100300553 | 3,60 to 3,70 | 2,70 to 3,60 | 6,40 | 5,08 | 1,60 | 3,40 | 2
01300100556 | 3,60 to 3,70 | 3,00 to 4,00 | 6,40 | 5,50 | 1,60 | 3,50 | 2
00100300555 | 3,60 to 3,70 | 4,50 to 5,50 | 6,40 | 7,11 | 1,60 | 3,40 | 2
00100300556 | 3,60 to 3,70 | 5,50 to 6,50 | 6,40 | 7,87 | 1,60 | 3,40 | 2
00100300557 | 3,60 to 3,70 | 5,70 to 6,50 | 6,40 | 8,90 | 1,60 | 4,00 | 2
00100300563 | 4,10 to 4,20 | 7,50 to 8,50 | 8,00 | 10,41 | 2,20 | 4,90 | 2
00100300567 | 4,10 to 4,20 | 0,80 to 1,60 | 11,10 | 4,75 | 3,00 | 6,10 | 2
00100300568 | 4,10 to 4,20 | 1,60 to 3,20 | 11,10 | 6,35 | 3,00 | 6,10 | 2
00100300569 | 4,10 to 4,20 | 3,20 to 4,70 | 11,10 | 7,92 | 3,00 | 6,10 | 2
00100300570 | 5,10 to 5,20 | 1,50 to 2,50 | 9,00 | 4,50 | 2,20 | 5,00 | 2
00100300561 | 5,10 to 5,20 | 2,50 to 3,50 | 8,90 | 5,60 | 2,20 | 4,90 | 2
00100300562 | 5,10 to 5,20 | 2,70 to 4,30 | 8,90 | 6,60 | 2,20 | 4,90 | 2
01300100572 | 5,10 to 5,20 | 3,50 to 4,50 | 9,00 | 6,50 | 2,20 | 5,00 | 2
01300100573 | 5,10 to 5,20 | 4,50 to 5,50 | 9,00 | 7,50 | 2,20 | 5,00 | 2
01300100574 | 5,10 to 5,20 | 5,50 to 6,50 | 9,00 | 8,50 | 2,20 | 5,00 | 2
00100300533 | 5,10 to 5,20 | 5,51 to 6,50 | 9,00 | 8,38 | 2,10 | 5,00 | 2
00100300282 | 5,10 to 5,20 | 5,84 to 7,62 | 8,90 | 9,40 | 2,40 | 5,00 | 2
01300100575 | 5,10 to 5,20 | 6,50 to 7,50 | 9,00 | 9,50 | 2,20 | 5,00 | 2
00100300563 | 5,10 to 5,20 | 7,50 to 8,50 | 8,90 | 10,41 | 2,20 | 4,90 | 2
01300100576 | 5,10 to 5,20 | 7,50 to 8,50 | 9,00 | 10,50 | 2,20 | 5,00 | 2
00100300275 | 5,20 to 5,30 | 4,00 to 5,00 | 8,90 | 7,00 | 1,90 | 5,00 | 2
01300100577 | 5,90 to 6,00 | 3,00 to 4,50 | 12,00 | 6,30 | 2,70 | 5,80 | 2
01300100578 | 6,10 to 6,20 | 2,50 to 4,00 | 12,00 | 6,00 | 2,50 | 6,00 | 2
00100300565 | 6,10 to 6,20 | 2,50 to 4,00 | 12,10 | 6,00 | 2,50 | 6,00 | 2
00100300566 | 6,10 to 6,20 | 3,50 to 5,50 | 12,00 | 8,00 | 3,00 | 6,00 | 2
01300100579 | 6,10 to 6,20 | 3,50 to 5,50 | 12,00 | 8,00 | 3,00 | 6,00 | 2
01300100580 | 6,10 to 6,20 | 21,50 to 23,50 | 12,00 | 26,00 | 3,00 | 6,00 | 2
01300100581 | 6,10 to 6,20 | 23,50 to 25,50 | 12,00 | 28,50 | 3,00 | 6,00 | 2
MRMHM 快装铆钉用于需要快速推入式装配的场合。可免工具安装：将其置于孔中并按压。加大头部便于插入，腿部展开以永久锁定面板或组件。
组合与特性
部分铆钉可提供以下组合与特性：
- 材料：PA6、PA66 和 PA46（耐热）。
- UL94 标准：V0 与 V2。
- 颜色：黑色、白色、青铜色，特殊颜色可按要求定制。
认证与合规
RoHS：符合
UL94：V2 - V0
IP：未注明
尺寸
尺寸单位：毫米
文件与媒体
图纸：提供 PDF（产品图纸可用）。
视频：提供产品演示视频。
规格表（参考 | 孔径 | 面板厚度 | D | L | H | d | 类型）
Reference | Hole size | Panel thickness | D | L | H | d | Type
00100300537 | 2,10 to 2,20 | 0,60 to 1,20 | 4,20 | 2,29 | 1,20 | 1,90 | 1
01300100530 | 2,10 to 2,20 | 0,60 to 1,20 | 4,20 | 2,40 | 1,20 | 2,00 | 1
01300100531 | 2,10 to 2,20 | 1,30 to 2,00 | 4,20 | 3,20 | 1,20 | 2,00 | 1
00100300538 | 2,10 to 2,20 | 1,30 to 2,00 | 4,20 | 3,30 | 1,20 | 1,90 | 1
00100300539 | 2,10 to 2,20 | 2,10 to 2,80 | 4,15 | 4,10 | 1,20 | 2,00 | 1
01300100532 | 2,10 to 2,20 | 2,10 to 2,80 | 4,20 | 4,00 | 1,20 | 2,00 | 1
01300100533 | 2,10 to 2,20 | 2,90 to 3,60 | 4,20 | 4,80 | 1,20 | 2,00 | 1
00100300540 | 2,10 to 2,20 | 2,90 to 3,60 | 4,20 | 4,83 | 1,20 | 1,90 | 1
01300100534 | 2,10 to 2,20 | 3,70 to 4,40 | 4,20 | 5,60 | 1,20 | 2,00 | 1
00100300597 | 2,10 to 2,20 | 3,80 to 4,80 | 4,20 | 5,60 | 1,20 | 1,90 | 1
00100300541 | 2,10 to 2,20 | 4,40 to 5,00 | 4,20 | 6,35 | 1,20 | 1,90 | 1
01300100535 | 2,10 to 2,20 | 4,40 to 5,20 | 4,20 | 6,40 | 1,20 | 2,00 | 1
00100300730 | 2,11 to 2,21 | 5,21 to 5,72 | 4,19 | 7,50 | 1,20 | 1,93 | 1
00100300542 | 2,60 to 2,70 | 1,00 to 2,00 | 5,00 | 3,30 | 1,40 | 2,50 | 1
00100300543 | 2,60 to 2,70 | 2,70 to 3,60 | 5,00 | 4,83 | 1,40 | 2,50 | 1
00100300544 | 2,60 to 2,70 | 3,40 to 4,30 | 3,70 | 5,60 | 0,70 | 2,50 | 1
00100300591 | 2,60 to 2,70 | 3,60 to 5,00 | 5,00 | 6,30 | 1,40 | 2,50 | 1
00100300592 | 2,60 to 2,70 | 4,30 to 5,80 | 5,00 | 7,10 | 1,40 | 2,50 | 1
01300100536 | 2,70 to 2,80 | 1,00 to 2,00 | 5,00 | 3,20 | 1,40 | 2,60 | 1
01300100537 | 2,70 to 2,80 | 2,00 to 3,00 | 5,00 | 4,20 | 1,40 | 2,60 | 1
03500100998 | 2,70 to 2,80 | 2,00 to 3,00 | 5,00 | 4,20 | 1,40 | 2,60 | 1
00100300276 | 2,70 to 2,80 | 2,00 to 3,00 | 5,10 | 4,30 | 1,70 | 2,60 | 2
01300100538 | 2,70 to 2,80 | 2,70 to 3,60 | 5,00 | 4,80 | 1,40 | 2,60 | 1
00100300530 | 2,70 to 2,80 | 3,10 to 3,90 | 5,20 | 5,20 | 1,60 | 2,65 | 2
01300100539 | 2,70 to 2,80 | 3,40 to 4,30 | 5,00 | 5,50 | 1,40 | 2,60 | 1
01300100540 | 2,70 to 2,80 | 4,30 to 5,20 | 5,00 | 6,40 | 1,40 | 2,60 | 1
01300100541 | 2,70 to 2,80 | 5,10 to 6,00 | 5,00 | 7,20 | 1,40 | 2,60 | 1
00100300593 | 3,00 to 3,20 | 5,00 to 6,00 | 6,40 | 7,60 | 1,60 | 3,00 | 1
01300100542 | 3,10 to 3,20 | 1,00 to 2,00 | 6,40 | 3,50 | 1,60 | 3,00 | 1
00100300271 | 3,10 to 3,20 | 1,30 to 2,50 | 6,40 | 3,50 | 1,60 | 3,00 | 2
00100300545 | 3,10 to 3,20 | 1,90 to 3,00 | 6,20 | 4,65 | 1,50 | 3,00 | 1
01300100543 | 3,10 to 3,20 | 2,00 to 3,00 | 6,40 | 4,50 | 1,60 | 3,00 | 1
00100300550 | 3,10 to 3,20 | 2,00 to 3,00 | 6,40 | 4,57 | 1,60 | 3,00 | 1
01300100544 | 3,10 to 3,20 | 2,50 to 3,50 | 6,40 | 5,00 | 1,60 | 3,00 | 1
01300100545 | 3,10 to 3,20 | 3,00 to 4,00 | 6,40 | 5,50 | 1,60 | 3,00 | 1
01300100546 | 3,10 to 3,20 | 4,00 to 5,00 | 6,40 | 6,50 | 1,60 | 3,00 | 1
00100300546 | 3,10 to 3,20 | 4,00 to 5,00 | 6,40 | 6,60 | 1,60 | 3,00 | 1
01300100547 | 3,10 to 3,20 | 5,00 to 6,00 | 6,40 | 7,50 | 1,60 | 3,00 | 1
00100300547 | 3,10 to 3,20 | 5,50 to 6,50 | 6,40 | 7,87 | 1,60 | 3,00 | 1
01300100548 | 3,10 to 3,20 | 5,50 to 6,50 | 6,40 | 8,00 | 1,60 | 3,00 | 1
00100300548 | 3,10 to 3,20 | 6,50 to 7,50 | 6,40 | 8,90 | 1,60 | 3,00 | 1
01300100549 | 3,10 to 3,20 | 6,50 to 7,50 | 6,40 | 9,00 | 1,60 | 3,00 | 1
00100300549 | 3,10 to 3,20 | 7,50 to 8,50 | 6,40 | 9,91 | 1,60 | 3,00 | 1
01300100550 | 3,10 to 3,20 | 7,50 to 8,50 | 6,40 | 10,00 | 1,60 | 3,00 | 1
00100300281 | 3,10 to 3,20 | 10,20 to 11,20 | 6,40 | 13,20 | 1,70 | 3,00 | 3
01300100551 | 3,10 to 3,20 | 11,50 to 13,00 | 6,40 | 14,50 | 1,60 | 3,00 | 1
01300100552 | 3,10 to 3,20 | 20,50 to 21,50 | 6,40 | 23,00 | 1,60 | 3,00 | 1
00100300272 | 3,20 to 3,30 | 3,00 to 4,00 | 6,30 | 5,50 | 1,60 | 3,00 | 1
00100300284 | 3,50 to 3,60 | 1,50 to 3,00 | 6,40 | 4,60 | 1,50 | 3,40 | 2
00100300277 | 3,50 to 3,60 | 3,00 to 4,00 | 6,40 | 5,60 | 1,50 | 3,40 | 2
01300100553 | 3,60 to 3,70 | 1,20 to 2,10 | 6,40 | 3,50 | 1,60 | 3,50 | 2
00100300551 | 3,60 to 3,70 | 1,20 to 2,10 | 6,40 | 3,56 | 1,60 | 3,40 | 2
00100300552 | 3,60 to 3,70 | 2,10 to 3,00 | 6,40 | 4,32 | 1,60 | 3,40 | 2
01300100554 | 3,60 to 3,70 | 2,10 to 3,00 | 6,40 | 4,50 | 1,60 | 3,50 | 2
01300100555 | 3,60 to 3,70 | 2,70 to 3,60 | 6,40 | 5,00 | 1,60 | 3,50 | 2
00100300553 | 3,60 to 3,70 | 2,70 to 3,60 | 6,40 | 5,08 | 1,60 | 3,40 | 2
01300100556 | 3,60 to 3,70 | 3,00 to 4,00 | 6,40 | 5,50 | 1,60 | 3,50 | 2
00100300555 | 3,60 to 3,70 | 4,50 to 5,50 | 6,40 | 7,11 | 1,60 | 3,40 | 2
00100300556 | 3,60 to 3,70 | 5,50 to 6,50 | 6,40 | 7,87 | 1,60 | 3,40 | 2
00100300557 | 3,60 to 3,70 | 5,70 to 6,50 | 6,40 | 8,90 | 1,60 | 4,00 | 2
00100300563 | 4,10 to 4,20 | 7,50 to 8,50 | 8,00 | 10,41 | 2,20 | 4,90 | 2
00100300567 | 4,10 to 4,20 | 0,80 to 1,60 | 11,10 | 4,75 | 3,00 | 6,10 | 2
00100300568 | 4,10 to 4,20 | 1,60 to 3,20 | 11,10 | 6,35 | 3,00 | 6,10 | 2
00100300569 | 4,10 to 4,20 | 3,20 to 4,70 | 11,10 | 7,92 | 3,00 | 6,10 | 2
00100300570 | 5,10 to 5,20 | 1,50 to 2,50 | 9,00 | 4,50 | 2,20 | 5,00 | 2
00100300561 | 5,10 to 5,20 | 2,50 to 3,50 | 8,90 | 5,60 | 2,20 | 4,90 | 2
00100300562 | 5,10 to 5,20 | 2,70 to 4,30 | 8,90 | 6,60 | 2,20 | 4,90 | 2
01300100572 | 5,10 to 5,20 | 3,50 to 4,50 | 9,00 | 6,50 | 2,20 | 5,00 | 2
01300100573 | 5,10 to 5,20 | 4,50 to 5,50 | 9,00 | 7,50 | 2,20 | 5,00 | 2
01300100574 | 5,10 to 5,20 | 5,50 to 6,50 | 9,00 | 8,50 | 2,20 | 5,00 | 2
00100300533 | 5,10 to 5,20 | 5,51 to 6,50 | 9,00 | 8,38 | 2,10 | 5,00 | 2
00100300282 | 5,10 to 5,20 | 5,84 to 7,62 | 8,90 | 9,40 | 2,40 | 5,00 | 2
01300100575 | 5,10 to 5,20 | 6,50 to 7,50 | 9,00 | 9,50 | 2,20 | 5,00 | 2
00100300563 | 5,10 to 5,20 | 7,50 to 8,50 | 8,90 | 10,41 | 2,20 | 4,90 | 2
01300100576 | 5,10 to 5,20 | 7,50 to 8,50 | 9,00 | 10,50 | 2,20 | 5,00 | 2
00100300275 | 5,20 to 5,30 | 4,00 to 5,00 | 8,90 | 7,00 | 1,90 | 5,00 | 2
01300100577 | 5,90 to 6,00 | 3,00 to 4,50 | 12,00 | 6,30 | 2,70 | 5,80 | 2
01300100578 | 6,10 to 6,20 | 2,50 to 4,00 | 12,00 | 6,00 | 2,50 | 6,00 | 2
00100300565 | 6,10 to 6,20 | 2,50 to 4,00 | 12,10 | 6,00 | 2,50 | 6,00 | 2
00100300566 | 6,10 to 6,20 | 3,50 to 5,50 | 12,00 | 8,00 | 3,00 | 6,00 | 2
01300100579 | 6,10 to 6,20 | 3,50 to 5,50 | 12,00 | 8,00 | 3,00 | 6,00 | 2
01300100580 | 6,10 to 6,20 | 21,50 to 23,50 | 12,00 | 26,00 | 3,00 | 6,00 | 2
01300100581 | 6,10 to 6,20 | 23,50 to 25,50 | 12,00 | 28,50 | 3,00 | 6,00 | 2
PDF产品目录
ISC PLASTIC PARTS 的其他产品
Automotive
* 显示价格为参考价，此价格不含税、不含运费、不含关税，也不包含因安装或投入使用所产生的其他额外费用。参考价格可能因国家、原材料价格和汇率的不同而产生变化。
