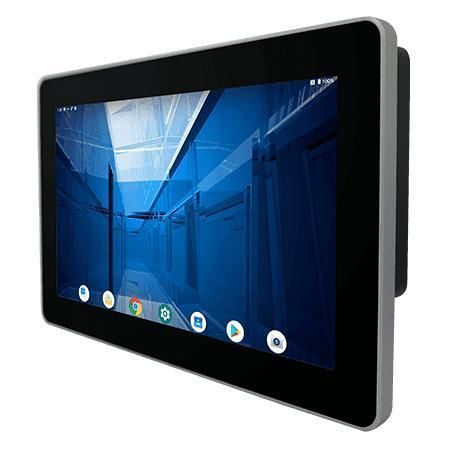

PCAP电容式触摸屏工业平板电脑 W10IM3S-PCH2-POE

触摸屏多点触摸屏式10.1"

产品简介
Winmate W10IM3S-PCH2-POE 是一款 10.1 英寸 ARM A53 S 系列人机界面（HMI）面板电脑，针对机械控制、工厂自动化和操作员 HMI 设计。适用于需要可靠硬件的工业采购方、OEM 及系统集成商，满足在苛刻、嵌入式或关键任务环境下对性能、耐用性和长期供应周期的要求。

重点特色

• 10.1 英寸 1280 x 800 投射式电容多点触控（P-CAP）
• 无风扇散热与超低功耗设计
• 支持以太网供电（PoE）
• 可选 2MP 前置摄像头
• 可选 HF（13.56 MHz）RFID 读卡器
• 时尚纤薄设计，适用于会议室预订、门禁和房间信息显示等场景
• 前面板 IP65 防水防尘
• 支持 Android 或 Linux 操作系统

产品资讯
以太网供电（PoE）：通过一根线同时传输数据与电源，简化布线并支持集中式电源管理，适用于门禁控制与工业自动化等场景。

时尚设计：S 系列相比传统面板电脑更纤薄（约薄 35%），平整的玻璃面板便于清洁且抗划伤，提升现场维护便利性。

投射电容触控：玻璃盖板提供抗划伤保护，支持多点（4 点）触控与手势操作，触控响应平滑，利于操作效率。

前面板 IP65：前面板密封以防止灰尘和水溅进入，适用于可能遭受飞溅或灰尘的环境。

Caractéristiques / spécifications techniques

• Display - Size: 10.1 inches
• Display - Touch / Glass: Projected Capacitive Multi Touch Screen
• Display - Resolution: 1280x800
• Display - Panel Brightness: 350.0 nits (1000 nits optional)
• Display - Contrast Ratio: 800:1
• Display - View Angles: 85,85,85,85
• Display - Active Area: 216.96 x 135.6 mm
• System Specification - Processor: ARM A53 (Quad Core 2.0GHz)
• System Specification - Memory: 4GB LPDDR4
• System Specification - Storage: eMMC: Onboard 32 GB
• System Specification - Operating System: Android 11 (Upgradeable to Android 13) (Default); Linux Yocto 5.15.47 with QT 5.15 (Optional); Linux Ubuntu Server 22.04 (Optional)
• System Specification - WLAN: Support (Optional)
• System Specification - BT: Support (Optional)
• System Specification - RFID: HF RFID Reader 13.56 MHz (Optional)
• Mechanical - Dimension: 264 x 173 x 36 mm
• Mechanical - Cut out: 250 x 159 mm
• Mechanical - Weight: 1.2 kg
• Mechanical - Mounting: Panel mount; VESA mount
• Mechanical - Enclosure: Plastic Front Bezel with Metal Back Cover
• Mechanical - Cooling System: Fanless Design
• Environment - Operating Humidity: 10% to 90% RH, Non-Condensing
• Environment - Operating Temperature: 0°C to 50°C
• Environment - Storage Temperature: -20°C to 60°C
• Environment - Shock: MIL-STD-810H Method 516.8 Procedure I
• Environment - Vibration: MIL-STD-810H Method 514.8 Procedure I
• Environment - IP rating: Front IP65
• Certification: CE, FCC
• IO Ports - USB Port: 2 x USB 2.0 Type A; 1 x Micro USB 2.0 OTG
• IO Ports - Serial Port: 1 x RS232/422/485 (Default RS232)
• IO Ports - LAN: 1 x LAN 10/100/1000 Mbps
• IO Ports - Video: 1 x Micro HDMI Output (Optional)
• IO Ports - Audio: 1 x Speaker
• IO Ports - SD Card Slot: 1 x Micro SD card slot (Max to 32GB)
• Accessory: 100~240V AC to DC Adapter; Power Cord; Terminal Block to 2.5Ø Female Adapter Cable; Open Wire Cable with terminal block connector; VESA screws
• Power - Power Rating: 12V DC with Terminal Block (Default); 9~36V (Optional)
• Power - Adapter: 12V 50W
• Power - POE: PoE (PD): follows IEEE 802.3at (25 W)
• Camera - Front Camera: 2MP Camera (Optional)
