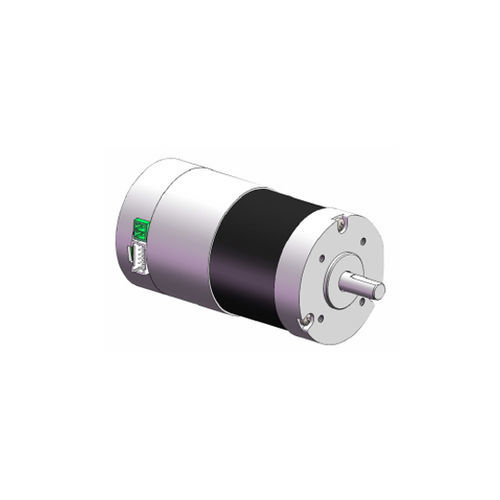

直流伺服电机 57BLY1S series

24伏IP65高解析度

Features:17-bit to 23-bit absolute photoelectric encoder, offering high-end and high responsiveness.Speed: Excellent high-speed performance, typical rated speed up to 3000 rpm, maximum speed up to 6000 rpm.Adaptability: Strong overload resistance, can withstand loads up to three times the rated torque, especially suitable for applications with instantaneous load fluctuations and requiring rapid start.Stability: Smooth operation at low speed, no stepper-like running phenomenon at low speed. Suitable for high-speed response requirements.Timeliness: Short dynamic response time for motor acceleration and deceleration, generally within tens of milliseconds.Comfort: Significantly reduced heat and noise.Product Specifications:ModelVoltage (AC)Current (A)Torque (Nm)Weight (kg)Body Length (mm)MD57BLY1S85-24-00230-1R00124V2.8A0.1685.5MD57BLY1S105-24-00330-1R00124V5.6A0.32105.5MD57BLY1S125-24-00530-1R00124V8.4A0.48125.5MD57BLY1S145-24-C00630-B1-4-1R24V11.2A0.64Motor Specifications:ItemSpecificationWinding Connection MethodStar connectionEncoder Type17-bit absolute encoderShaft Run-out0.025 mmRadial Play0.06 mm @ 450gAxial Play0.08 mm @ 450gMax Radial Load15N @ 20mm from flangeMax Axial Load10NInsulation ClassB classDielectric Withstand Voltage500VAC for 1 minuteDielectric ResistanceMin 100Ω, 500VDCInsulation ResistanceMin 100Ω, 500VDCMotor Models:MD57BLY1S85-24-C00230-B1-4-1RMD57BLY1S105-24-C00330-B1-4-1RMD57BLY1S125-24-C00530-B1-4-1RMD57BLY1S145-24-C00630-B1-4-1RElectrical Specifications Table:Rated Voltage (V)Rated Power (W)Rated Current (A)Rated Torque (Nm)Peak Torque (Nm)Rated Speed (rpm)Max Speed (rpm)Line Resistance (Ω)Line Inductance (mH)Torque Constant (Nm/A)Body Length (mm)Protection LevelMotor Insulation Class24502.80.160.48300043000.781.820.05785IP65B241005.60.320.96300043000.350.830.057105IP65B241508.40.481.44300043000.20.540.057125IP652420011.20.641.92300043000.160.420.057145IP65Wiring Definitions:CN1: DC power ground, DC power positive (24-36V), reverse connection will damage the driver.CN5: Output and input terminals, command direction terminals, pulse command terminals, input common terminal, etc.CN6: 485 communication terminals, reserved terminals, communication common point.CN7: 485 communication terminals, program upgrade clock and data lines, 3.3V communication power.Outline Drawing:Key Features / Technical Specifications:Encoder: 17-23 bit absolute photoelectric encoderRated speed: up to 3000 rpm, max 6000 rpmOverload: withstands 3x rated torqueLow-speed stability, high-speed responseDynamic response: tens of millisecondsReduced heat and noiseProtection: IP65Insulation class: B
