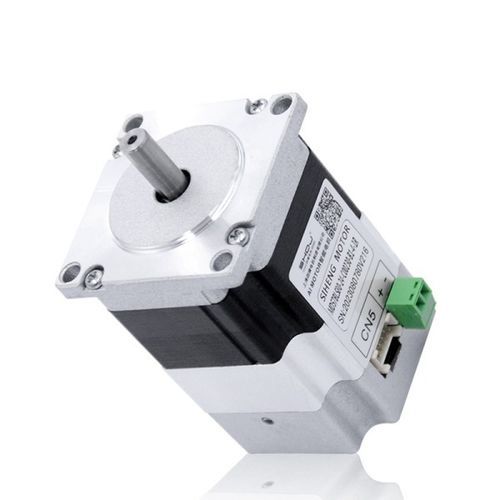

无刷伺服电机 MD57AIS77-24-00610-1R直流24伏带制动装置
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 类型
- 直流, 无刷
- 电压
- 24伏
- 构造
- 永磁, 带制动装置
- 防护指数
- IP65
- 极数
- 10极
- 应用
- 用于机器人, 工业, 轴
- 其他特性
- 一体化驱动, 闭合回路
- 功率
32 W, 60 W, 85 W
(0.04 hp, 0.08 hp, 0.12 hp)- 强度
2.9 A, 6.2 A
- 扭矩
0.96 Nm
(0.70806 ft.lb)- 旋转速度
最多: 2,100 rpm
(13,194.6891 rad.min-1)最少: 1,000 rpm
(6,283.1853 rad.min-1)- 直径
57 mm
(2.24 in)- 温度
最多: 80 °C
(176 °F)最少: -20 °C
(-4 °F)
产品介绍
Technical ParametersTechnical SpecificationsDimensionProduct Category: Integrated DC Servo Motor and DriverTags: BLDC motor, Brushless motor, Closed-loop stepper motor, DC servo motor, Motor driver, Servo motor and driver, Stepper motorKey Features / Technical Specifications:57mm series AI integrated DC servo motor and driverIntegrated design for compact installationSupports AI-based control and feedbackClosed-loop operation for high precisionBrushless DC motor technologyMultiple dimension and wiring diagrams available (see images above)
