螺纹嵌件 MCT series
钢碳化物圆形

添加到我的收藏夹

添加到产品对比表

产品规格型号

类型

螺纹

材料

钢, 碳化物

形状

圆形

功能

用于金属

内径

最少: 7.94 mm
(0.31 in)

最多: 19.05 mm
(0.75 in)

外径

最少: 10 mm
(0.39 in)

最多: 25 mm
(0.98 in)

长度

最少: 6.83 mm
(0.27 in)

最多: 8.83 mm
(0.35 in)

产品说明

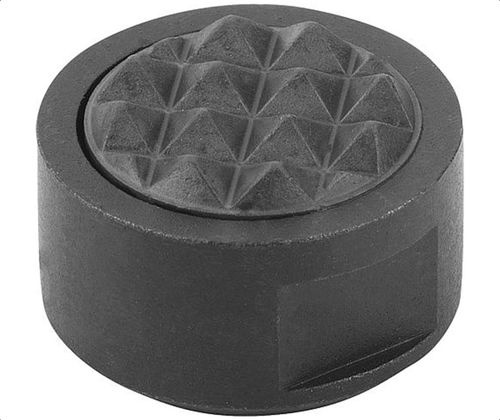

锯齿状硬质合金夹持垫焊接于经热处理的合金钢本体。带盲孔攻丝以便从背面安装；外径带平面以便通过紧定螺钉安装，确保固定可靠且定位可重复。

零件选项

MCT-100 — 螺纹: M5x0.80; D: 10 mm; D1: 5/16; L: 6.83; L1: .80; H: 10 mm; H1: 4.75 mm; H2: 4.5 mm; F x 45°: .8; 齿型: EF
MCT-102 — 螺纹: M5x0.80; D: 10 mm; D1: 5/16; L: 8.83; L1: .80; H: 12 mm; H1: 4.75 mm; H2: 6.0 mm; F x 45°: .8; 齿型: EF
MCT-120 — 螺纹: M5x0.80; D: 12 mm; D1: 3/8; L: 6.83; L1: .80; H: 10 mm; H1: 4.75 mm; H2: 4.5 mm; F x 45°: .8; 齿型: Fine
MCT-122 — 螺纹: M5x0.80; D: 12 mm; D1: 3/8; L: 8.83; L1: .80; H: 12 mm; H1: 4.75 mm; H2: 6.0 mm; F x 45°: .8; 齿型: Fine
MCT-160 — 螺纹: M6x1.00; D: 16 mm; D1: 1/2; L: 6.83; L1: .80; H: 10 mm; H1: 4.75 mm; H2: 4.5 mm; F x 45°: .8; 齿型: Fine
MCT-162 — 螺纹: M6x1.00; D: 16 mm; D1: 1/2; L: 8.83; L1: .80; H: 12 mm; H1: 4.75 mm; H2: 6.0 mm; F x 45°: .8; 齿型: Fine
MCT-200 — 螺纹: M6x1.00; D: 20 mm; D1: 5/8; L: 6.83; L1: .80; H: 10 mm; H1: 4.75 mm; H2: 4.5 mm; F x 45°: .8; 齿型: Fine
MCT-202 — 螺纹: M6x1.00; D: 20 mm; D1: 5/8; L: 8.83; L1: .80; H: 12 mm; H1: 4.75 mm; H2: 6.0 mm; F x 45°: .8; 齿型: Fine
MCT-250 — 螺纹: M6x1.00; D: 25 mm; D1: 3/4; L: 6.83; L1: .80; H: 10 mm; H1: 4.75 mm; H2: 4.5 mm; F x 45°: .8; 齿型: Fine
MCT-252 — 螺纹: M6x1.00; D: 25 mm; D1: 3/4; L: 8.83; L1: .80; H: 12 mm; H1: 4.75 mm; H2: 6.0 mm; F x 45°: .8; 齿型: Fine

特性 / 技术规格

结构: 锯齿状硬质合金夹持垫焊接于经热处理的合金钢本体
安装: 带盲孔攻丝以便背面安装；外径平面用于紧定螺钉安装
系列: MCT 系列
可用齿型: EF 和 Fine
可用螺纹尺寸: M5x0.80 和 M6x1.00
可用零件号/尺寸: MCT-100, MCT-102, MCT-120, MCT-122, MCT-160, MCT-162, MCT-200, MCT-202, MCT-250, MCT-252
