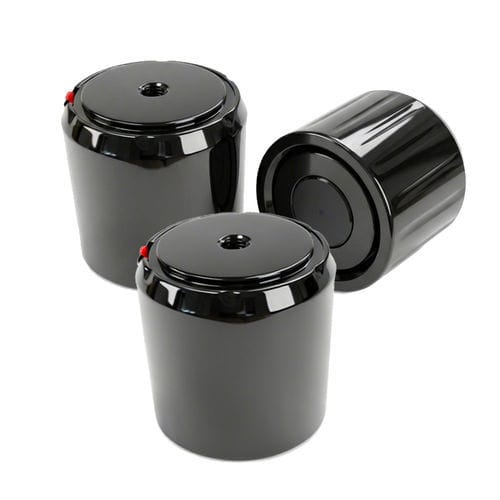

吸持电磁铁 WL 3031

闭锁紧凑型永磁式

产品概述 永磁电磁铁将永磁磁路与电控线圈结合，提供一种仅在切换或释放时消耗电能的磁保持装置。该混合设计在保持稳定吸合力的同时显著降低持续能耗，适用于工业自动化、安全锁、机器人以及对能耗敏感的系统。

主要优点

• 节能：仅在状态变化时供电
• 保持力稳定，适用于锁定和夹紧
• 结构紧凑，切换响应快
• 发热少，使用寿命长
• 适配电池供电或低能耗应用

应用

• 自动化设备：定位、夹紧与锁定
• 安防与门禁：磁性锁与卡扣机构
• 机器人：末端执行器抓取与换刀系统
• 工业机械：工装夹持、阀门控制与精密运动
• 医疗设备与消费电子中需要低功耗与静音工作的场合

产品资料 Brand: Weilong Technology
Model Number: WL 3031
Rated Voltage (V): DC 12V, 18V and 24V
Rated Power (W): 3-5 W
Work Mode: Power on, Magnet off
Holding Force (N): 130 N
Working Duty: 10%
Resistance: 32 Ω
Service Life: 100 Thousand Times (typical specification shown)
Certification: CE, ROHS, ISO9001
Material: Superior Magnet; Carbon Steel Housing
Lead Wire Length (mm): 200 MM
Install Style: Screw Hole
Tolerance of Dimension: +/- 0.1 MM
Water-proof: None (standard unit)
Insulation Class: B
Hi-Pot Test: AC 600V 50/60Hz 2s
Non-excitation Holding Force: 0
Working Temperature: -10°C - 100°C
Duty Cycle: 1-100%
Payment Term: TT, or LC At Sight
Sample Order: Yes
Warranty: 1 Year
MOQ: 1000 pcs
Supply Ability: 5000 pcs per Week
Delivery Time: 30 Days
Port of Loading: shenzhen

优点 / 缺点

• 优点：节能、断电保持（故障安全）、发热少、保持可靠、寿命长、运行安静
• 缺点：相较于简单电磁铁初始成本更高、控制电子更复杂、力可调范围有限（多为开/关）、通常重量较大、复杂集成需混合系统工程知识

特性 / 技术规格

• Model: WL 3031
• Brand: Weilong Technology
• Rated Voltages: DC 12V, 18V, 24V
• Power Consumption: 3-5 W
• Holding Force: 130 N
• Resistance (coil): 32 Ω
• Lead Wire Length: 200 mm
• Insulation Class: B
• Operating Temperature Range: -10°C to 100°C
• Duty Cycle: 1-100% (work duty example 10%)
• Service Life: Specified 100,000 cycles (typical), expected >1,000,000 cycles with proper application for some configurations
• Housing Material: Carbon steel with plating options
• Mounting: Screw holes; precision CNC dimensions with tolerance +/- 0.1 mm
• Certifications: CE, RoHS, ISO9001
• Typical Applications: automation, security locks, robotics, industrial control, medical and consumer devices
