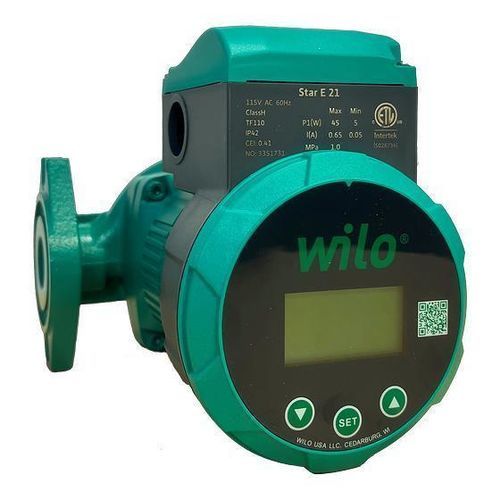

保温环流器 Star E 21

保温环流器 - Star E 21 - Wilo
保温环流器 - Star E 21 - Wilo
添加到我的收藏夹
添加到产品对比表

产品规格型号

技术参数
保温

产品介绍

应用
  • Heating and cooling
  • Industrial Circulation
  • Water/Glycol concentrations up to 50%
  • Solar
  • Geothermal

设备/功能
  • High-efficiency, EC Motor-driven technology
  • Differential temperature control
  • Auto mode: Automatically adjusts to the system demand
  • Three HD modes – proportional control
  • Four speed control
  • LED display and adjustment buttons for easy set-up and changes

技术数据
  • Fluid temperature range: 36°F to 230°F
  • Maximum operating pressure: 145 PSI (10 Bar)
  • Cast Iron HT200 pump body
  • Composite PA66+30%GF impeller
  • Ceramic shaft

产品系列说明(表)
产品名称 | 管道连接 | 电源连接 | 每个板的数量 | 最大工作压力 | 商品编号
Star E 21 | 0.75"-1.5" Two Bolt Flange | 1~115 V, 60 Hz | 120 | 145 psi | 3351731

出厂状态
  • Plastic Composite Check Valves (Included but optional)

caractéristiques / spécifications techniques
  • Fluid temperature range: 36°F to 230°F
  • Maximum operating pressure: 145 PSI (10 Bar)
  • Cast Iron HT200 pump body
  • Composite PA66+30%GF impeller
  • Ceramic shaft
  • Pipe connection: 0.75"-1.5" Two Bolt Flange
  • Power connection: 1~115 V, 60 Hz
  • Quantity per board: 120
  • Item number: 3351731

PDF产品目录

该产品还没有PDF产品手册
