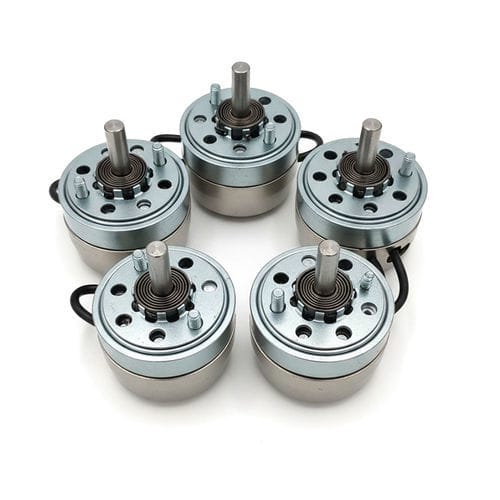

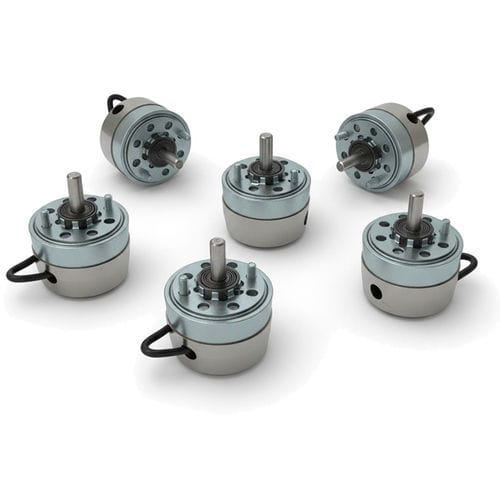

旋转电磁铁 WL 0623

闭锁分拣免维护

Overview
The WL0623 is a compact rotary solenoid actuator that converts electrical energy into precise angular motion using electromagnetic force. The coil current produces a magnetic field that rotates the armature and shaft, reducing mechanical friction and increasing lifetime in automated systems. The rotation rate can be controlled by adjusting current magnitude and pulse characteristics to favor speed (higher current) or precision (lower current).

Key Features

• Very precise angular motion in fixed amounts (typical angles: 25°, 45°, 90°).
• Fast dynamic response (response time in the order of milliseconds depending on coil inductance, load, and drive).
• High repeatability and reliable position without complex linkages.
• Compact, small footprint suitable for space-constrained applications.
• Available in bi-directional or spring-return modes.
• Low maintenance and long life due to simple electromagnetic design.
• Configurable for different voltages, stroke angles, duty cycles and torque ranges.

Characteristics (detailed)

• Electromagnetic driving principle: current through the coil creates magnetic field; interaction with armature produces torque and rotation.
• Reduced friction compared to gear or linkage systems, increasing service life in continuous or frequent-operation environments.
• Precise angle control capability: adjustable by current control; advanced units may include angle feedback devices (encoders) for closed-loop control.
• Fast dynamic response: coil energize/de-energize produces nearly instantaneous magnetic change enabling millisecond-level actuation for high-speed sorting, gating or switching.
• Compact, integration-friendly structure: coil, magnetic core, armature, optional return spring and rotating shaft enable easy mounting into automation systems.
• High reliability and operational stability: simple construction, options for moisture-resistant encasement, corrosion-resistant materials, dust sealing and thermal protection for harsh environments.

Applications

• Packaging and high-speed sorting machines (product diverters, gates, sorting arms).
• Valve actuation (quarter-turn ball valves, latches).
• Vending machines, product release mechanisms and document diverters in office automation.
• Medical and laboratory equipment (sample control, lock releases).
• Security systems and electronic locking.
• Robotics, mechatronics and small actuator tasks where fast, repeatable angular motion is required.

Operation & Maintenance

• Regular inspection of coil resistance and integrity (use a multimeter to detect short/open circuits).
• Check mechanical connections between armature and shaft for looseness; ensure shaft and sliding surfaces are clean and free of debris.
• Cleaning: keep actuator surfaces free of dust and contaminants especially in harsh environments (mining, food processing); prevent foreign objects from jamming armature/core gap.
• Lubrication: where applicable, lightly grease shafts to prevent rust and ensure smooth rotation, following manufacturer guidance.
• Thermal considerations: monitor heating under high duty or stalled conditions; ensure duty cycle and cooling are appropriate for the chosen model.
• Troubleshooting: low torque may result from low voltage, coil degradation or wiring issues; inflexible rotation may indicate foreign objects or rust.

Caractéristiques / spécifications techniques

• Brand: Weilong Technology
• Model Number: WL 0623
• Rated Voltage (V): DC 12V, 18V or 24V
• Rated Power (W): 20–50 W
• Work Model: Rotation
• Holding Force / Holding Torque: ≈ 0.1 – 0.4 Nm (datasheet typical: 0.15 – 0.4 Nm)
• Rotating Angle: From 25°, 45° (common options)
• Working Duty: 10% or 25% (intermittent typical; duty depends on variant)
• Service Life: 500,000 cycles (table) — datasheet typical life: 1–5 million cycles depending on conditions
• Certification: CE, ROHS, ISO9001
• Material: Carbon steel housing
• Lead Wire Length (mm): 200
• Install Style: screw
• Tolerance of Dimension: +/- 0.1 mm
• Water-proof: None (standard model)
• Insulation Class: B
• Hi-Pot Test: AC 600V 50/60Hz 2s
• Non-excitation Holding Force: 0 (no holding when unenergized)
• Working Temperature: -10°C to 100°C (table) — datasheet typical operating: -10°C to +50°C
• Duty Cycle Range (typical): 1–100% (varies by model; intermittent commonly limited to 25%)
• Typical Power Consumption (datasheet): 15–70 W
• Response Time (datasheet): 15–30 ms
• Shaft Type (datasheet): D-shaped or flat, diameter 4–6 mm
• Expected Weight (datasheet): 150–300 grams
• Expected Life Examples: normal conditions up to 10 million cycles; harsh conditions down to ~1 million cycles
• Sample Order: Yes
• Warranty: 1 Year
• MOQ: 1000 PCS (manufacturer table)
• Supply Ability: 5000 pcs per week
• Delivery Time: 30 Days
• Port of Loading: shenzhen
