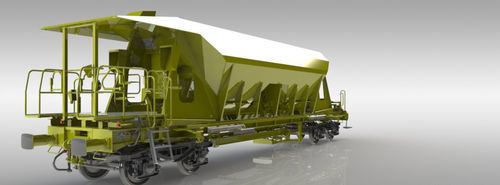

电动运输带 Faccns (Xans)

带轮

特性

• 该自卸式料斗货车适用于运输和卸载用于轨道维护的骨料。
• 卸载通过电动振动槽和输送机完成。
• 卸载需要外部电源——来自供电车或电网。
• 车体设计满足 TSI、EN、UIC 要求。

功能

• 可从车体两侧进行卸载。
• 卸载区域位于车轴1.3 – 4.5 m处，或在轨道之间。

参数（表）
Axle load - 22.5 t / axle
Track gauge - 1,435 mm
Loading gauge - G1-TSI
Brake regime - ”S”
Brake type - GP-A
Max. speed at 90,0 t - 100 km/h
Max. speed (unloaded) - 120 km/h
Climate condition - T1
Rmin - 35.0 m
Length over buffers - 15,000 mm
Tare weight - ~ 26.2 t
Payload - ~ 63.8 t
Loading volume - 40.0 m3
Loading opening - 9,200 x 1,500 mm
Unloading opening - 2 x 1,900 x 1,000 mm
Number of sections - 2
Discharging time - ~ 8 min.
Material of box - Carbon steel
Bogie type - Y25Lsdi(f)
Power supply - 3 x 400 V / 16 kVA

技术规格

• Axle load: 22.5 t / axle
• Track gauge: 1,435 mm
• Loading gauge: G1-TSI
• Brake regime: ”S”
• Brake type: GP-A
• Maximum speed at 90.0 t: 100 km/h
• Maximum speed (unloaded): 120 km/h
• Climate condition: T1
• Minimum curve radius (Rmin): 35.0 m
• Length over buffers: 15,000 mm
• Tare weight: approximately 26.2 t
• Payload: approximately 63.8 t
• Loading volume: 40.0 m3
• Loading opening: 9,200 x 1,500 mm
• Unloading opening: 2 x 1,900 x 1,000 mm
• Number of sections: 2
• Discharging time: approximately 8 minutes
• Box material: Carbon steel
• Bogie type: Y25Lsdi(f)
• Power supply: 3 x 400 V / 16 kVA
