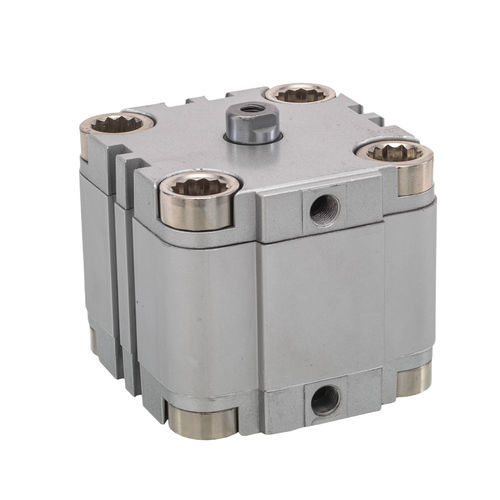

气缸 SDVUL series

导向活塞杆螺纹柄磁性活塞式

产品概述
双作用短行程气缸，内置非旋转导向机构，配备磁性活塞以便传感检测，杆端为内螺纹（母螺纹）。可选缸径 Ø16–Ø80 mm，行程 10–80 mm。适用于需防止活塞旋转的工业精密应用，如拣放、夹具与定位等场景。

主要特性

• 内置非旋转防转导向
• 缸径范围：Ø16–Ø80 mm
• 行程范围：10–80 mm
• 磁性活塞，兼容传感器检测
• 内螺纹杆，便于直接安装
• 短行程紧凑设计，适合空间受限场合

可用配置（页面显示摘录）
型号 | 缸径 (mm) | 行程 (mm) | 价格 (GBP)
SDVUL16X10S | 16mm | 10mm | £119.67
SDVUL16X15S | 16mm | 15mm | £121.98
SDVUL16X20S | 16mm | 20mm | £124.38
SDVUL16X25S | 16mm | 25mm | £128.01
SDVUL16X30S | 16mm | 30mm | £129.21
SDVUL16X40S | 16mm | 40mm | £134.25
SDVUL16X50S | 16mm | 50mm | £138.96
SDVUL16X60S | 16mm | 60mm | £143.88
SDVUL16X70S | 16mm | 70mm | £151.95
SDVUL16X80S | 16mm | 80mm | £153.42
SDVUL20X10S | 20mm | 10mm | £122.25
SDVUL20X15S | 20mm | 15mm | £124.47
SDVUL20X20S | 20mm | 20mm | £127.11
SDVUL20X25S | 20mm | 25mm | £130.83
SDVUL20X30S | 20mm | 30mm | £132.03
SDVUL20X40S | 20mm | 40mm | £137.16
SDVUL20X50S | 20mm | 50mm | £142.02
SDVUL20X60S | 20mm | 60mm | £147.00
SDVUL20X70S | 20mm | 70mm | £155.22
SDVUL20X80S | 20mm | 80mm | £156.81
SDVUL25X10S | 25mm | 10mm | £128.58
SDVUL25X15S | 25mm | 15mm | £131.13
SDVUL25X20S | 25mm | 20mm | £133.80
SDVUL25X25S | 25mm | 25mm | £137.76
SDVUL25X30S | 25mm | 30mm | £138.96

特性 / 技术规格

• 动作方式：双作用
• 防转：内置非旋转导向
• 磁性活塞：是（用于传感器检测）
• 杆端：内螺纹杆
• 缸径：16 mm 至 80 mm
• 行程长度：10 mm 至 80 mm
• 系列配置：共 80 种配置可选（页面显示摘录）
• 典型应用：精密定位、拣放、夹具场景，需防止活塞旋转的场合
