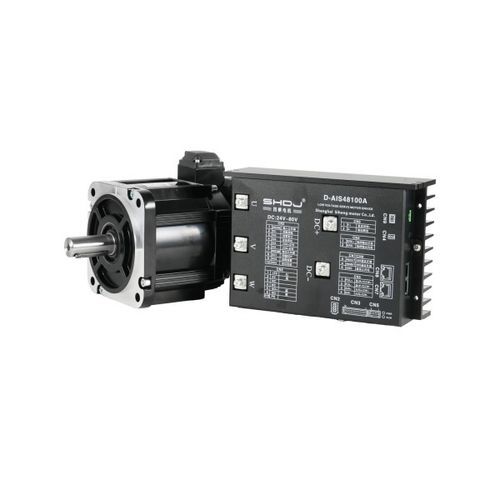

直流伺服电机 110mm Series无刷48V60V
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 类型
- 直流, 无刷
- 电压
- 48V, 60V
- 构造
- 带制动装置
- 防护指数
- IP65
- 极数
- 4极, 10极
- 应用
- 工业
- 其他特性
- 低电压, 闭合回路
- 功率
2 kW
(2.72 hp)- 强度
6 A, 41 A, 56 A
- 扭矩
5 Nm, 6 Nm, 6.4 Nm
(3.687811 ft.lb, 4.425373 ft.lb, 4.720398 ft.lb)
产品介绍
Product Specifications M-110 series low-voltage servo motor Model Voltage (AC) Current (A) Torque (Nm) Weight (kg) Motor Length (mm) M110AIS204 – 48 – C05030 – B1 – 4 48 41 204 M110AIS219 – 48 – C06030 – B1 – 4 60 34.5 219 M110AIS219 – 48 – C06430 – B1 – 4 48 56 219 Motor Model M110AIS204 – 48 – C05030 – B1 – 4 M110AIS219 – 48 – C06030 – B1 – 4 M110AIS219 – 48 – C06430 – B1 – 4 Rated Power (kW) 1500 1800 2000 Rated Voltage (V) 48 48 48 Rated Current (A) 41 6.0 56 Rated Speed (rpm) 3000 3000 3000 Max Speed (rpm) – – 4000 Rated Torque (Nm) 5.0 6 6.4 Line Back-EMF Constant 9.2 61 6.7±10% Line Resistance (Ω) 0.04±10% 0.78 0.02±10% Line Inductance (mH) 0.07±10% 2.68 0.03±% Rotor Inertia 6.3 7.6 7.6±% L without Brake (mm) 204 219 219 L with Brake (mm) 269 284 284 Number of Rotor Pole Pairs 48 4 Motor Insulation Class Class F Protection Level IP65 Motor Dimension Driver Dimension Product type: 110mm Series DC Servo Motor and Driver Low-voltage servo motor Rated power: 1.5kW, 1.8kW, 2.0kW Rated voltage: 48V Rated current: 41A, 6.0A, 56A Rated speed: 3000rpm Max speed: up to 4000rpm (model dependent) Rated torque: 5.0Nm, 6Nm, 6.4Nm Line Back-EMF Constant: 9.2, 61, 6.7±10% Line resistance: 0.04±10%, 0.78, 0.02±10% Line inductance: 0.07±10%, 2.68, 0.03±% Rotor inertia: 6.3, 7.6, 7.6±% Length without brake: 204mm, 219mm Length with brake: 269mm, 284mm Number of rotor pole pairs: 48, 4 Insulation class: F Protection level: IP65
