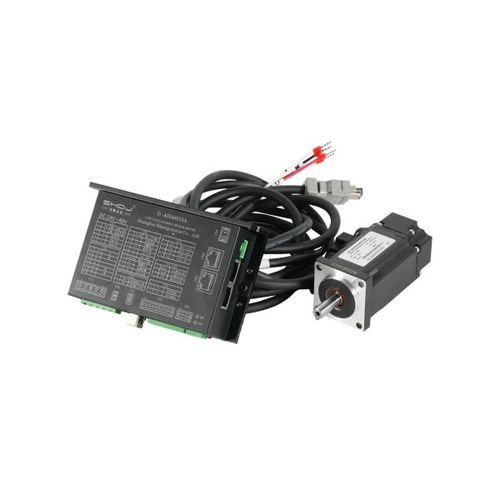

直流伺服电机 M40AIS series24伏48V带制动装置
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 类型
- 直流
- 电压
- 24伏, 48V
- 构造
- 永磁, 带制动装置, 带编码器
- 防护指数
- IP54
- 极数
- 10极
- 应用
- 用于机器人, 工业
- 其他特性
- CANopen, EtherCAT, RS-485, 闭合回路
- 功率
100 W
(0.14 hp)- 强度
8 A, 16 A
- 扭矩
0.33 Nm
(0.243396 ft.lb)- 旋转速度
3,000 rpm, 3,200 rpm
(18,849.5559 rad.min-1, 20,106.193 rad.min-1)- 直径
40 mm
(1.57 in)- 温度
最多: 50 °C
(122 °F)最少: -10 °C
(14 °F)
产品介绍
Technical ParametersTechnical SpecificationsMotor DimensionsDriver DimensionProduct Category: 40mm Series DC Servo Motor and DriverTags: BLDC Motor, Brushless Motor, Closed-loop Stepper Motor, DC Servo Motor, Motor Driver, Servo Motor and Driver, Stepper MotorFeatures / Technical Specifications:Series: 40mmType: DC Servo Motor and DriverBrushless DC MotorClosed-loop control supportedIncludes driver and motorDetailed technical drawings and dimensions available in images above
