蝶阀 R487杠杆软性座阀晶片
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 种类
- 蝶形
- 驱动类型
- 杠杆
- 主体材料
- 软性座阀, 晶片, 吊耳
- 应用
- 变速箱
- 材质
- EPDM, 金属, 铁, NBR, 环氧
- 其他特性
- ISO, DIN, 结实耐用型, ATEX
- 通径
最多: 600 mm
(23.622 in)最少: 25 mm
(0.984 in)- 压力
最多: 16 bar
(232.1 psi)最少: 0 bar
(0 psi)- 温度
最多: 70 °C
(158 °F)-10 °C, 160 °C
(14 °F, 320 °F)最少: -10 °C
(14 °F)
产品介绍
Soft-sealing, centrally mounted butterfly valve

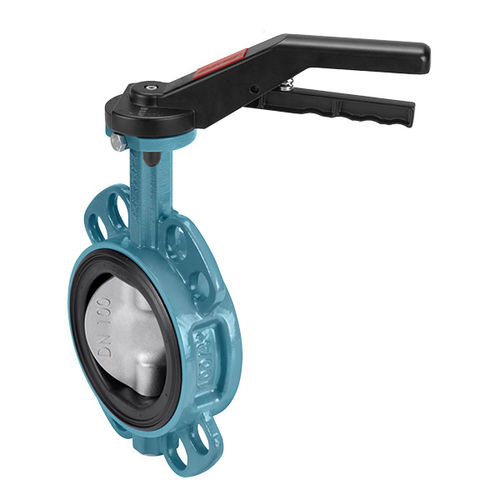

The GEMÜ R487 Victoria soft seated metal butterfly valve is manually operated. It has a hand lever or gearbox depending on customer requirements. The butterfly valve is available in nominal sizes DN 25 to 600 and in standard installation lengths ISO 5752/20 | EN 558-1/20 | API 609 category A (DIN 3202 K1) in wafer, lug and U section body versions.
The GEMÜ R487 Victoria soft seated metal butterfly valve is manually operated. It has a hand lever or gearbox depending on customer requirements. The butterfly valve is available in nominal sizes DN 25 to 600 and in standard installation lengths ISO 5752/20 | EN 558-1/20 | API 609 category A (DIN 3202 K1) in wafer, lug and U section body versions.
- Low torques thanks to PTFE coated bushes
- Bubble tight sealing acc. to EN 12266-1/P12, leakage rate A
- Liner material is easy to read when installed
- Sleek disc design for higher Kv values
- Robust body coating comparable to ISO 12944-6 C5
- Various actuator types can be selected
- Optional accessories are installed, set and tested so they are ready for operation
