蝶阀 D451气动用于溶剂用于水
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 种类
- 蝶形
- 驱动类型
- 气动
- 介质
- 用于水, 用于溶剂
- 主体材料
- 法兰, 晶片
- 应用
- 化学, 工业, OEM
- 材质
- EPDM, PVC, PP
- 其他特性
- 常闭, 耐腐蚀, 双效, 常开
- 通径
最少: 50 mm
(1.969 in)最多: 300 mm
(11.811 in)- 压力
最少: 0 bar
(0 psi)最多: 10 bar
(145 psi)- 温度
最少: 5 °C
(41 °F)最多: 80 °C
(176 °F)
产品介绍

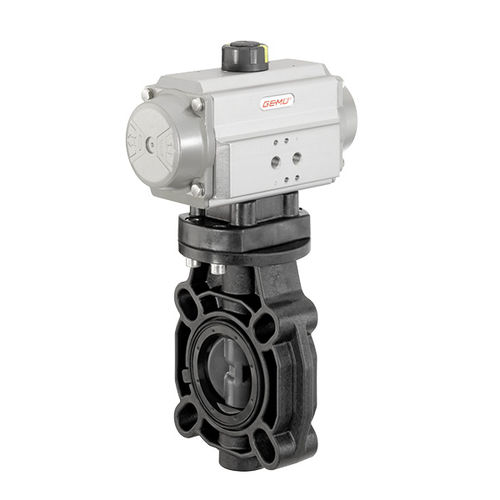

Soft-sealing, centrally mounted butterfly valve
The GEMÜ D451 soft seated butterfly valve has a metal actuator and is pneumatically operated. The "Normally Closed", "Normally Open" and "Double Acting" control functions are available. The butterfly valve is available in nominal sizes DN 50–300 and has a wafer body version.
The GEMÜ D451 soft seated butterfly valve has a metal actuator and is pneumatically operated. The "Normally Closed", "Normally Open" and "Double Acting" control functions are available. The butterfly valve is available in nominal sizes DN 50–300 and has a wafer body version.
- Excellent corrosion protection
- UV resistant
- Disc outlet dimension designed on plastic piping
- Simple installation
- Low pressure loss
- Low weight
- Low torque
