蝶阀 428电动分配用于水
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 种类
- 蝶形
- 驱动类型
- 电动
- 功能
- 分配
- 介质
- 用于水
- 主体材料
- 螺纹, 小型, IP67, IP65, IP68
- 应用
- 工业, 用于真空
- 材质
- 不锈钢, EPDM, 黄铜
- 其他特性
- 标准, 紧凑型, 结实耐用型
- 通径
最多: 50 mm
(1.969 in)最少: 15 mm
(0.591 in)- 压力
最多: 10 bar
(145 psi)最少: 0 bar
(0 psi)- 温度
最多: 160 °C
(320 °F)最少: -20 °C
(-4 °F)
产品介绍

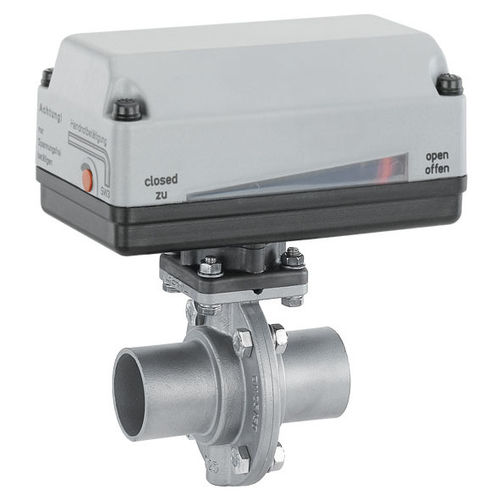

Soft-seated, centrally mounted stainless steel butterfly valve in small nominal sizes
The GEMÜ 428 soft-seated, centric butterfly valve made of stainless steel is operated by an electric motor. A manual override and an optical position indicator are integrated as standard. With its rounded and polished disc edges, the butterfly valve is optimized for frequent cycle duties. The surface of the butterfly valve can be further finished.
The GEMÜ 428 soft-seated, centric butterfly valve made of stainless steel is operated by an electric motor. A manual override and an optical position indicator are integrated as standard. With its rounded and polished disc edges, the butterfly valve is optimized for frequent cycle duties. The surface of the butterfly valve can be further finished.
- Available in small nominal sizes
- Suitable for vacuum applications and low temperatures
- High-quality stainless steel butterfly valve
- Compact and robust body
