蝶阀 D487杠杆软性座阀法兰
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 种类
- 蝶形
- 驱动类型
- 杠杆
- 主体材料
- 法兰, 软性座阀, 晶片, 吊耳, 大型
- 应用
- 变速箱
- 材质
- 不锈钢, 铸铁, 铝, 合金, EPDM, 金属, 青铜, 铁, NBR
- 其他特性
- ISO, DIN, ATEX
- 通径
最少: 25 mm
(0.984 in)最多: 1,600 mm
(62.992 in)- 压力
最少: 0 bar
(0 psi)最多: 16 bar
(232.1 psi)- 温度
最少: -60 °C
(-76 °F)最多: 210 °C
(410 °F)
产品介绍
Soft-seated, centrally mounted butterfly valve with special materials

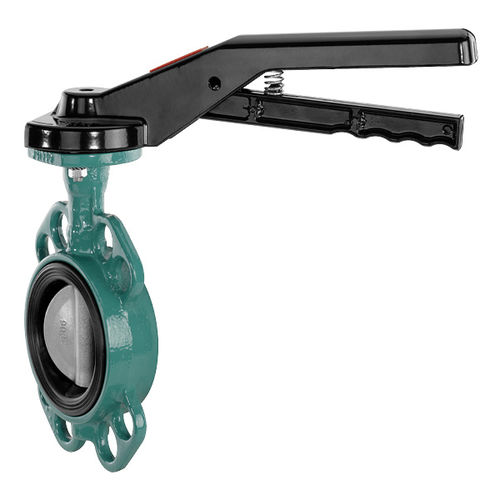

The GEMÜ D487 Victoria soft-seated butterfly valve is manually operated. It has a metal hand lever or gearbox depending on customer requirements. The butterfly valve is available in nominal sizes DN 25 up to 1600 and in standardized installation lengths ISO 5752/20 | EN 558-1/20 | API 609 category A (DIN 3202 K1) in wafer, lug and U section body versions.
The GEMÜ D487 Victoria soft-seated butterfly valve is manually operated. It has a metal hand lever or gearbox depending on customer requirements. The butterfly valve is available in nominal sizes DN 25 up to 1600 and in standardized installation lengths ISO 5752/20 | EN 558-1/20 | API 609 category A (DIN 3202 K1) in wafer, lug and U section body versions.
- Available in large nominal sizes
- Bubble tight sealing acc. to EN 12266-1/P12, leakage rate A
- Special materials for disc, seal and valve body
- Vulcanizable liner
- Abrasion-resistant version possible
