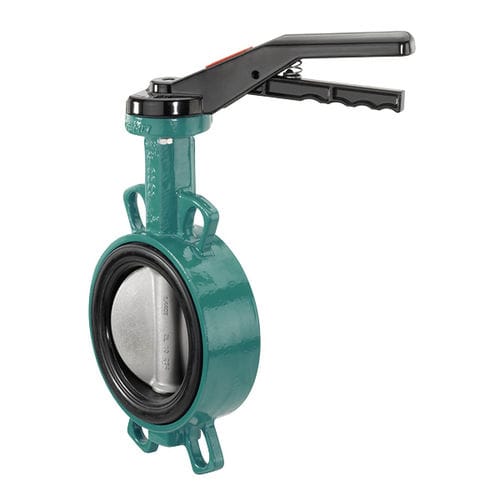

蝶阀 R487杠杆闭塞分配
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 种类
- 蝶形
- 驱动类型
- 杠杆
- 功能
- 闭塞, 分配
- 介质
- 热水, 废水, 用于饮用水, 用于冷却水, 工业用水, 用于海水, 用于盐水
- 主体材料
- 晶片, 吊耳, 可锁
- 应用
- 工业, 用于管道, 变速箱
- 材质
- EPDM, NBR
- 其他特性
- ISO, DIN, ATEX
- 通径
最多: 600 mm
(23.622 in)最少: 25 mm
(0.984 in)- 压力
最多: 16 bar
(232.1 psi)最少: 0 bar
(0 psi)- 温度
最多: 160 °C
(320 °F)最少: -10 °C
(14 °F)
产品介绍
Soft-sealing, centrally mounted butterfly valve
The GEMÜ R487 Victoria soft seated metal butterfly valve is manually operated. It has a hand lever or gearbox depending on customer requirements. The butterfly valve is available in nominal sizes DN 25 to 600 and in standard installation lengths ISO 5752/20 | EN 558-1/20 | API 609 category A (DIN 3202 K1) in wafer, lug and U section body versions.
The GEMÜ R487 Victoria soft seated metal butterfly valve is manually operated. It has a hand lever or gearbox depending on customer requirements. The butterfly valve is available in nominal sizes DN 25 to 600 and in standard installation lengths ISO 5752/20 | EN 558-1/20 | API 609 category A (DIN 3202 K1) in wafer, lug and U section body versions.
- Low torques thanks to PTFE coated bushes
- Bubble tight sealing acc. to EN 12266-1/P12, leakage rate A
- Liner material is easy to read when installed
- Sleek disc design for higher Kv values
- Robust body coating comparable to ISO 12944-6 C5
- Various actuator types can be selected
- Optional accessories are installed, set and tested so they are ready for operation
