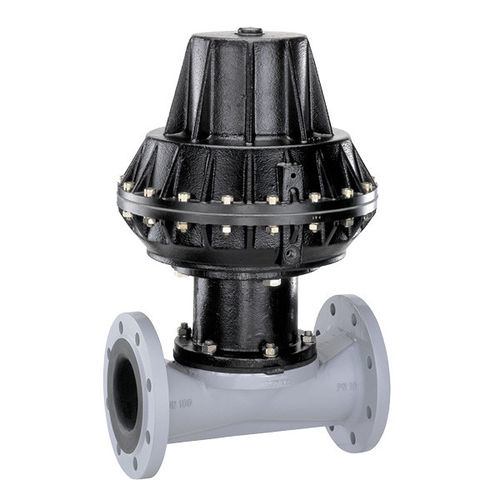

控制阀 656隔膜气动双法兰
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 种类
- 隔膜
- 驱动类型
- 气动
- 功能
- 控制
- 主体材料
- 双法兰
- 材质
- EPDM, NBR
- 通道数量
- 2位2通
- 其他特性
- ANSI, 双作用, 大流量
- 通径
最多: 250 mm
(9.843 in)最少: 25 mm
(0.984 in)- 压力
最多: 7 bar
(101.5 psi)最少: 0 bar
(0 psi)- 温度
最多: 60 °C
(140 °F)最少: 0 °C
(32 °F)
产品介绍
Deep-seated diaphragm valve with metal actuator
The GEMÜ 656 2/2-way diaphragm valve has a low maintenance metal diaphragm actuator and is pneumatically operated. Normally Closed (NC), Normally Open (NO) and Double Acting (DA) control functions are available. The valve body has a full bore design.
The GEMÜ 656 2/2-way diaphragm valve has a low maintenance metal diaphragm actuator and is pneumatically operated. Normally Closed (NC), Normally Open (NO) and Double Acting (DA) control functions are available. The valve body has a full bore design.
- High flow rate due to straight through flow
- Suitable for media with a high solids content such as fibres, coarse particles and sludge
- High mechanical stability
- Valve can be cleaned without disassembly of actuator
