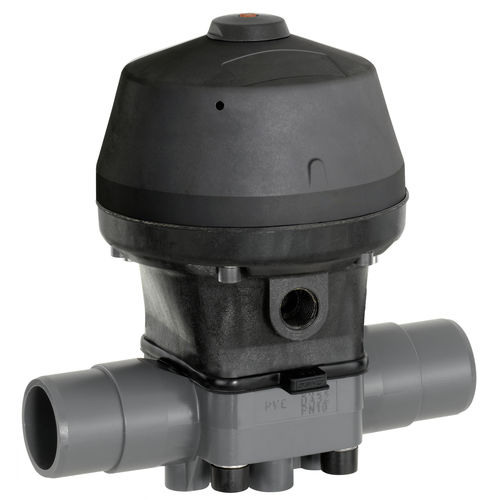

隔膜阀 R690气动操控式调节废水
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 种类
- 隔膜
- 驱动类型
- 气动操控式
- 功能
- 调节
- 介质
- 废水, 工业用水, 用于化学品
- 主体材料
- 法兰, 紧凑型
- 应用
- 工业, 化学, 用于粘稠液体
- 材质
- ABS, PP, 聚偏氟乙烯
- 通道数量
- 2位2通
- 其他特性
- ANSI, 双效, 常开, 大流量
- 通径
最多: 100 mm
(3.937 in)最少: 15 mm
(0.591 in)- 压力
最多: 10 bar
(145 psi)最少: 0 bar
(0 psi)- 温度
最多: 80 °C
(176 °F)最少: -10 °C
(14 °F)
产品介绍
Universally compatible diaphragm valve with high-flow valve body
The GEMÜ R690 2/2-way diaphragm valve has a low maintenance diaphragm actuator and is pneumatically operated. Normally Closed (NC), Normally Open (NO) and Double Acting (DA) control functions are available. The high-flow valve body provides compact dimensions at high flow rates.
The GEMÜ R690 2/2-way diaphragm valve has a low maintenance diaphragm actuator and is pneumatically operated. Normally Closed (NC), Normally Open (NO) and Double Acting (DA) control functions are available. The high-flow valve body provides compact dimensions at high flow rates.
- Compact system design due to flow-optimized high-flow valve bodies
- Reduced control air consumption
- Modified spring sets available for applications with reduced control pressure
- Position indicator and positioner optionally available
- Closing stroke limiter optionally available
