隔膜阀 650TL气动手动控制
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 种类
- 隔膜
- 驱动类型
- 手动, 气动
- 功能
- 控制
- 主体材料
- 螺纹
- 材质
- 不锈钢, PTFE, EPDM
- 通道数量
- 2位2通
- 其他特性
- ISO, DIN, ANSI, 自动
- 通径
最多: 25 mm
(0.984 in)最少: 4 mm
(0.157 in)- 压力
最多: 10 bar
(145 psi)最少: 0 bar
(0 psi)- 温度
最多: 100 °C
(212 °F)最少: -10 °C
(14 °F)
产品介绍
Valve with stainless steel handwheel and pneumatic safety function

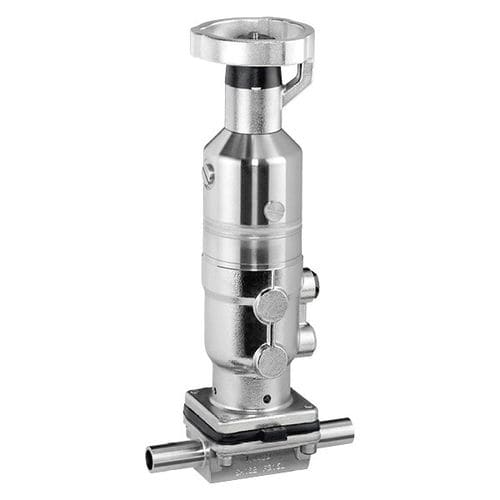

Diaphragm valve GEMÜ 650TL is a manually operated diaphragm valve with a pneumatic fail safe function. The valve can only be operated manually (opened/closed) if the actuator is supplied with compressed air. If this supply is interrupted, the valve closes due to the force of the spring and can no longer be opened manually.
Diaphragm valve GEMÜ 650TL is a manually operated diaphragm valve with a pneumatic fail safe function. The valve can only be operated manually (opened/closed) if the actuator is supplied with compressed air. If this supply is interrupted, the valve closes due to the force of the spring and can no longer be opened manually.
- Fail safe function (closed)
- Proximity switches can be fitted for recording the valve position
- CIP/SIP capable
- Closing stroke limiter (MG 8)
- Opening and closing stroke limiter (MG 10 + 25)
