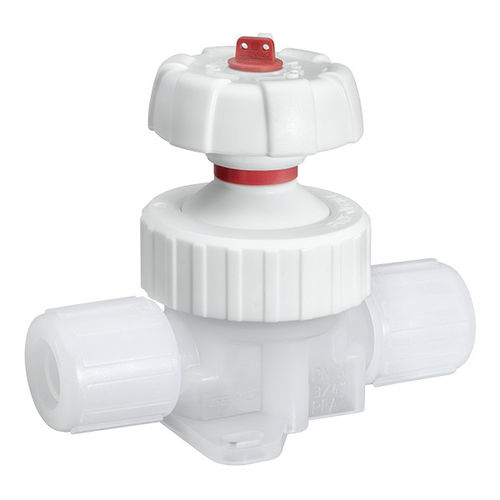

隔膜阀 C67手动用于化学品管道
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 种类
- 隔膜
- 驱动类型
- 手动
- 介质
- 用于化学品
- 应用
- 化学, 管道, 用于高纯度应用, OEM
- 材质
- PTFE, 聚偏氟乙烯, PFA
- 通道数量
- 2位2通
- 其他功能
- 异径
- 其他特性
- 大流量
- 通径
最多: 50 mm
(1.969 in)最少: 4 mm
(0.157 in)- 压力
最多: 6 bar
(87 psi)最少: 0 bar
(0 psi)- 温度
-10 °C, 150 °C
(14 °F, 302 °F)
产品介绍
Valve with high chemical resistance for the highest purity standards
The ultra pure 2/2-way diaphragm valve GEMÜ C67 HPW CleanStar is manually operated. All media wetted parts are produced from PFA or PTFE (HPW version). In the HPS version, there is a choice of PP-R, natural or PVDF for the valve body. A seal adjuster (not with AG 4) and an optical position indicator are integrated as standard. This High Purity version of the CleanStar series complies with the strictest purity standards and boasts high chemical resistance. It can also be used with high media temperatures. As such, it is often used at the supply and distribution level in semiconductor factories.
The ultra pure 2/2-way diaphragm valve GEMÜ C67 HPW CleanStar is manually operated. All media wetted parts are produced from PFA or PTFE (HPW version). In the HPS version, there is a choice of PP-R, natural or PVDF for the valve body. A seal adjuster (not with AG 4) and an optical position indicator are integrated as standard. This High Purity version of the CleanStar series complies with the strictest purity standards and boasts high chemical resistance. It can also be used with high media temperatures. As such, it is often used at the supply and distribution level in semiconductor factories.
- All wetted parts made of PFA or PTFE
- High flow rate with low-stress media channelling
- Optional flow direction
- Ideally suited for corrosive media
- Metal-free design
- Optional version with ECTFE union nut
- Also available as T valve
- Clean room production, fulfils SEMI F57
