隔膜阀 610气动操控式控制螺纹
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 种类
- 隔膜
- 驱动类型
- 气动操控式
- 功能
- 控制
- 主体材料
- 螺纹, 双
- 材质
- 塑料, PTFE, EPDM, PP, NBR
- 通道数量
- 2位2通
- 其他特性
- 标准, DIN, 整体式
- 通径
最多: 20 mm
(0.787 in)最少: 12 mm
(0.472 in)- 压力
最多: 6 bar
(87 psi)最少: 0 bar
(0 psi)- 温度
最多: 80 °C
(176 °F)最少: -10 °C
(14 °F)
产品介绍

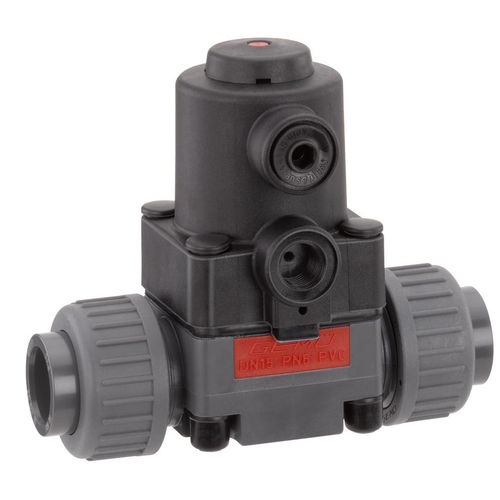

Compact diaphragm valve with plastic piston actuator
The GEMÜ 610 2/2-way diaphragm valve has a low maintenance plastic piston actuator and is pneumatically operated. An integral optical position indicator is standard. Normally Closed (NC), Normally Open (NO) and Double Acting (DA) control functions are available.
The GEMÜ 610 2/2-way diaphragm valve has a low maintenance plastic piston actuator and is pneumatically operated. An integral optical position indicator is standard. Normally Closed (NC), Normally Open (NO) and Double Acting (DA) control functions are available.
- Ideal for space-saving system design
- Integral optical position indicator and closing stroke limiter as standard
- Option with electrical position indicator
