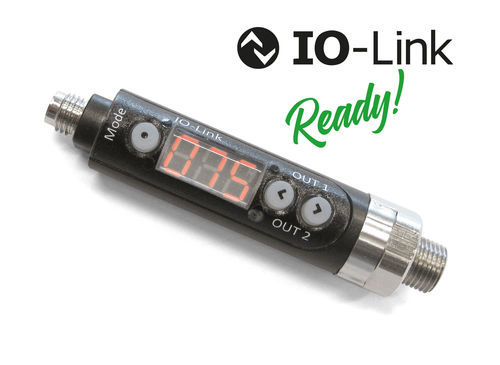

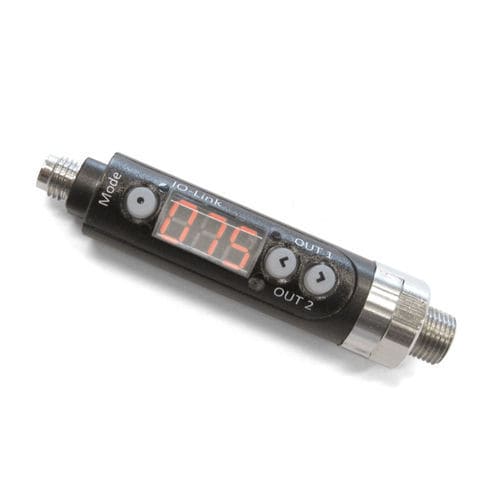

压力开关/真空调节器 / IO-Link 121010电子真空NO
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 所用技术
- 电子
- 压力类型
- 真空
- 接触方式
- NF, NO, IO-Link
- 电气连接
- M8连接器
- 进程连接
- G 1/8
- 流体
- 用于气体, 用于空气
- 材质
- 塑料
- 应用
- 用于气动装置
- 其他特性
- 数字, 紧凑型, 带显示器, 数字显示, 可编程, LED指示器, 温度补偿型, 智能
产品介绍
Overview
Main features
Connections
Applications
IO-Link
Product codes
caractéristiques / spécifications techniques
- Robust ABS housing, compact and lightweight; mountable on machinery and near the point of use.
- Calibrated and temperature-compensated sensor with integrated display that shows measured values (external vacuum gauge unnecessary).
Main features
- Signal indication: two LEDs indicate the status of two independent digital output signals.
- Programming: switching points and hysteresis (0–100% of set value) programmable via buttons.
- Configurable parameters: threshold comparison, NO/NC contacts, unit selection, parameter lock, and display inversion.
- Display rotation: free rotation to orient the display without disconnecting pneumatic connections.
Connections
- Pneumatic connections: double-threaded G 1/8 inch male or M5 female.
- Electrical connections: M8 4-pin; PUR cable with axial or radial connector available on request.
Applications
- Measurement and control of dry air and non-corrosive gases.
- Ideal for safety signals, cycle start, vacuum suction cup control, and optimizing energy consumption of vacuum generators.
IO-Link
- IO-Link version identifiable by a logo and the "IO-Link" inscription on the housing.
- Enables bidirectional digital communication, remote parameterization, and advanced diagnostics, turning the sensor into an intelligent device for Industry 4.0.
Product codes
- 121010
- 122511
caractéristiques / spécifications techniques
- Housing: robust ABS, compact, lightweight.
- Display: integrated, calibrated, temperature-compensated, rotatable.
- Output signals: two independent digital outputs with LED status indication.
- Programmable: switching points and hysteresis (0–100%), threshold comparison, NO/NC, unit selection, parameter lock, display inversion.
- Pneumatic connections: G 1/8" male double-threaded or M5 female.
- Electrical connection: M8 4-pin (PUR cable options: axial or radial connector).
- Media: dry air and non-corrosive gases.
- Applications: safety signals, cycle start, suction cup control, energy optimization of vacuum generators.
- IO-Link capabilities: bidirectional communication, remote parameterization, diagnostics.
- Associated product codes: 121010, 122511.
