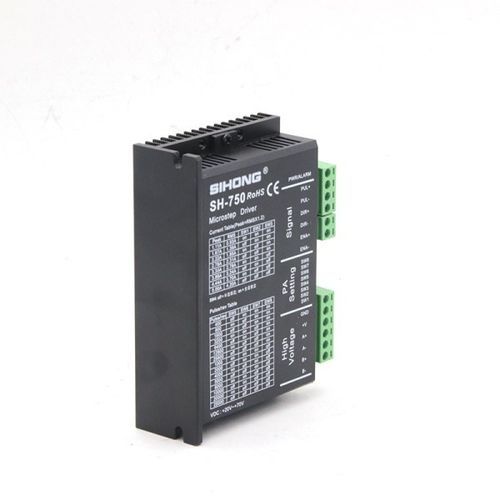

双相步进电机驱动器 SH-750

Product Overview:Drive: 4-wire, 8-wire two-phase stepper motorVoltage input range: 18~70 VDCCurrent maximum: 5.0A, resolution: 0.1ASubdivision range: 400~25600pprSignal input: differential/single end, pulse/direction or double pulse, 5-24VDC level compatiblePulse response frequency: 200KHzAutomatic setting of power on parametersPrecision current control reduces the heating of the motorProduct Details:1. Electrical Index2. Interface DefinitionA: Power Interface3. Dial Code SettingThe SH-750 driver adopts an 8-bit dial code switch to set subdivision, running current, and static half current. Detailed description is as follows:1) Operating Current Setting2) Segmentation3) Setting of Control Signal Mode4) SH-750 driver signal mode is set by 3 jumpers of PCB board4. Use Environment and Parameters5. Controller Wiring Diagram6. Installation DimensionsTechnical Specifications:Drive: 4-wire, 8-wire two-phase stepper motorVoltage input range: 18~70 VDCCurrent maximum: 5.0A, resolution: 0.1ASubdivision range: 400~25600pprSignal input: differential/single end, pulse/direction or double pulse, 5-24VDC level compatiblePulse response frequency: 200KHzAutomatic setting of power on parametersPrecision current control reduces the heating of the motor
