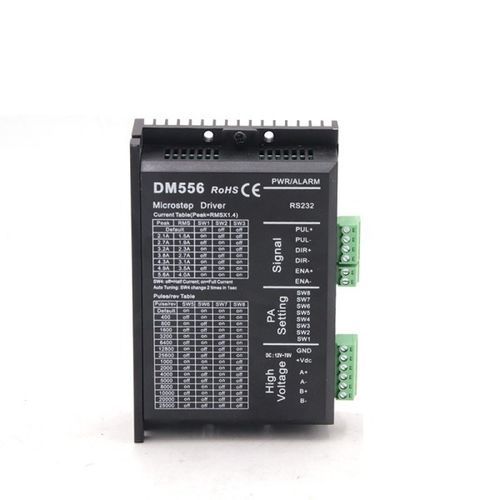

步进式电机驱动器 DM556

双相步进

Drive 4-wire, 8-wire two-phase stepper motor.Voltage input range: 18~60VCurrent maximum: 5.6ASubdivision range: 400~40000pprSignal input: differential/single end, pulse/direction or double pulse, 5-24VDC level compatiblePulse response frequency: 200KHzAutomatic setting of power on parametersPrecision current control reduces the heating of the motorProduct DetailsElectrical indexPower interfaceRunning current settingUse of environment and parametersDrive type: 4-wire, 8-wire two-phase stepper motorVoltage input range: 18~60VMaximum current: 5.6ASubdivision range: 400~40000pprSignal input: differential/single end, pulse/direction or double pulse, 5-24VDC compatiblePulse response frequency: 200KHzAutomatic setting of power-on parametersPrecision current control to reduce motor heating
