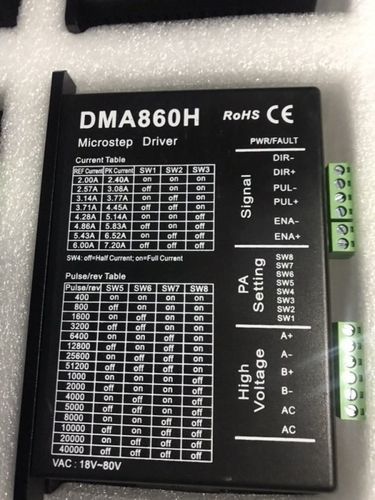

步进式电机驱动器 DMA860H

DCBLDC双相步进

Drive 4-wire, 8-wire two-phase stepper motor.Voltage input range: 20-110VAC 7A.Subdivision range: 400~40000ppr.Signal input: differential/single end, pulse/direction or double pulse, 5-24VDC level compatible.Pulse response frequency: 200KHz.Automatic setting of power on parameters.Precision current control reduces the heating of the motor.Electrical index:Interface definition:Driver signal mode setting:The DMA860H driver’s signal mode is set by 3 jumpers on the PCB board.Driver wiring diagram:Technical Specifications / Features:Drive type: 4-wire, 8-wire two-phase stepper motorVoltage input range: 20-110VAC, 7ASubdivision range: 400~40000pprSignal input: differential/single end, pulse/direction or double pulse, 5-24VDC compatiblePulse response frequency: 200KHzAutomatic parameter setting at power onPrecision current control to reduce motor heating
