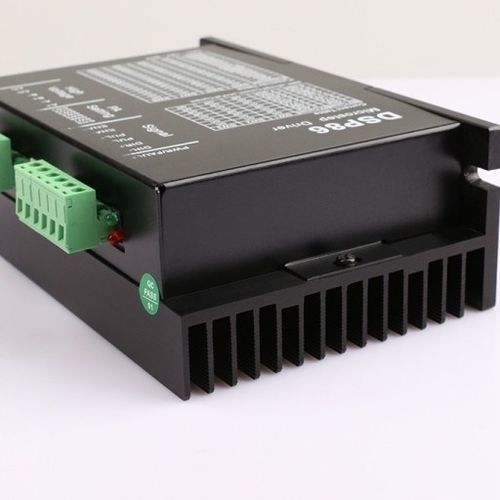

步进式电机驱动器 DSP86双相步进
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 其他特性
- 步进式, 双相步进
产品介绍
Drive 4-wire, 8-wire two-phase stepper motor.Voltage input range: 18~80 VAC.Current maximum: 6.0A.Subdivision range: 400~40000ppr.Signal input: differential/single end, pulse/direction or double pulse, 5-24VDC level compatible.Pulse response frequency: 200KHz.Automatic setting of power on parameters.Precision current control reduces the heating of the motor.Product DetailsElectrical indexPower interfaceSubdivision settingController wiring diagramTechnical SpecificationsDrive: 4-wire, 8-wire two-phase stepper motorVoltage input range: 18~80 VACCurrent maximum: 6.0ASubdivision range: 400~40000pprSignal input: differential/single end, pulse/direction or double pulse, 5-24VDC level compatiblePulse response frequency: 200KHzAutomatic setting of power on parametersPrecision current control reduces the heating of the motor
