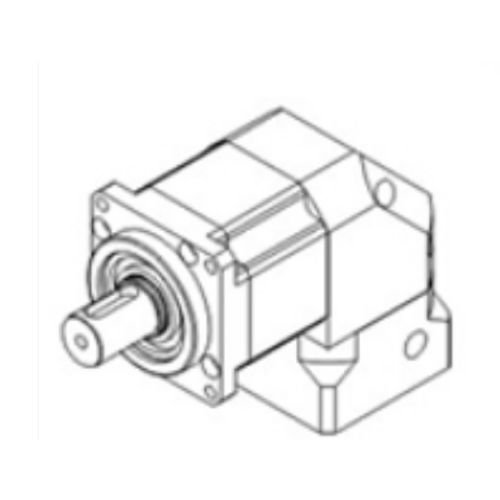

行星减速机 WPF60 series

正交空心轴精准

The output planet carrier of the reducer adopts an integrated nut design to eliminate axial clearance. The front and rear bearings are widely distributed within the overall housing, forming an ultra-strong integrated structure that ensures high torsional rigidity, excellent radial load-bearing capacity, and outstanding axial load-bearing capacity. The one-time machining process ensures extremely high coaxiality.Reducer Outline Dimension DrawingMain Technical ParametersGradeFirst StageSecond StageThird StageReduction Ratio3/4/5/7/1012/16/20/25/28/35/40/50/7080/100/125/140/175/200/250/700/1000Body Length (mm)150.5166.5182.5Max Radial Force (N)400500800Max Axial Force (N)300390700Full-load Efficiency≥94%≥92%≥88%Weight (kg)2.02.32.6Service Life≥20000 hours≥20000 hours≥20000 hoursRated Input Speed (rpm)300030003000Max Input Speed (rpm)800080008000Motor Power (W)400400400Gear Accuracy Grade6 GB/T10095 – 20086 GB/T10095 – 20086 GB/T10095 – 2008Operating Temperature–25°~ +90°–25°~ +90°–25°~ +90°Protection GradeIP65IP65IP65Lubrication MethodLong-life lubricationLong-life lubricationLong-life lubricationInstallation MethodFlangeFlangeFlangeCategory: GearboxTag: AC Servo Motor and DriverTechnical Specifications:Integrated nut design for zero axial clearanceWide-span front and rear bearings for high rigidityHigh torsional, radial, and axial load capacityOne-time machining for high coaxialityMultiple reduction ratios and stagesHigh efficiency and long service lifeRated input speed: 3000 rpm, Max input speed: 8000 rpmMotor power: 400WGear accuracy: Grade 6 GB/T10095 – 2008Operating temperature: –25°~ +90°Protection grade: IP65Long-life lubricationFlange installation
