行星减速机 WPF42 series

正交空心轴法兰

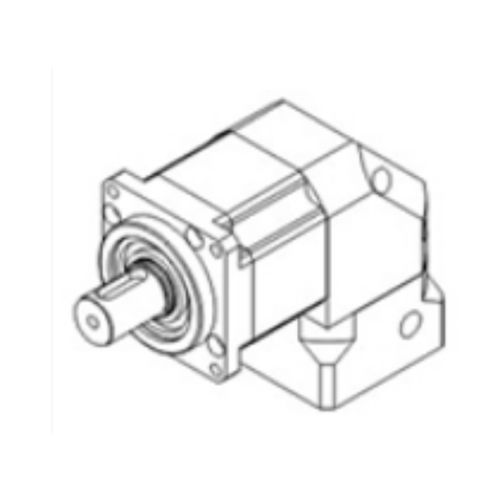

The output planet carrier of the reducer adopts an integrated nut design to eliminate axial clearance. The front and rear bearings are distributed over a large span within the overall housing, forming an ultra-strong integrated structure that ensures high torsional rigidity, excellent radial load-bearing capacity, and outstanding axial load-bearing capacity. The one-time machining process ensures extremely high coaxiality.Reducer Outline Dimension Drawing:Grade: First Stage / Second StageReduction Ratio: 4/5/8 (First Stage), 16/20/25/32/40 (Second Stage)Body Length: 72.2 mm (First Stage), 84.2 mm (Second Stage)Maximum Radial Force: 280 N (First Stage), 320 N (Second Stage)Maximum Axial Force: 200 N (First Stage), 240 N (Second Stage)Full-load Efficiency: ≥90% (First Stage), ≥86% (Second Stage)Weight: 0.7 kg (First Stage), 0.9 kg (Second Stage)Service Life: ≥20,000 hoursRated Input Speed: 2500 rpm (First Stage), 3000 rpm (Second Stage)Maximum Input Speed: 4500 rpm (First Stage), 6000 rpm (Second Stage)Gear Precision Grade: 6 GB/T10095 – 2008Operating Temperature: –25°~ +90°Protection Grade: IP65Lubrication Method: Long-life lubricationInstallation Method: FlangeCategory: GearboxTags: AC Servo Motor and DriverTechnical Specifications:Integrated nut design for zero axial clearanceLarge-span bearing layout for high rigidityHigh radial and axial load capacityHigh coaxiality due to one-time machiningMultiple reduction ratios availableIP65 protectionLong service life (≥20,000 hours)Flange installation
