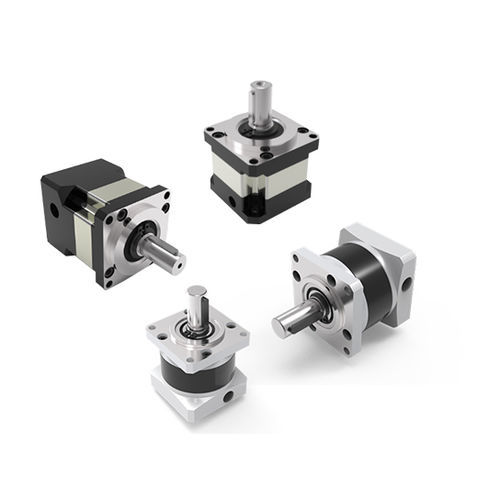

行星减速机 PF160 series

同轴空心轴

The output planetary carrier of the reducer adopts an integrated nut design to eliminate axial clearance. The front and rear bearings are widely distributed within the overall housing, forming an ultra-strong integrated structure that ensures high torsional rigidity, excellent radial load-bearing capacity, and outstanding axial load-bearing capacity. The process is completed in a single machining operation to ensure extremely high coaxiality.Reducer Outline Dimension DrawingMain Technical ParametersGradeFirst StageSecond StageThird StageReduction Ratio3/4/5/812/15/16/20/25/32/40/6480/100/120/125/160/200/256/512Body Length (mm)290334.5379Max Radial Force (N)100001220020000Max Axial Force (N)160002100036000Full-load Efficiency≥96%≥94%≥90%Weight (kg)17.523.527.5Service Life (hours)≥20000≥20000≥20000Rated Input Speed (rpm)250025002000Max Input Speed (rpm)450045005000Motor Power (W)300030003000Gear Precision Grade6 GB/T10095 – 20086 GB/T10095 – 20086 GB/T10095 – 2008Operating Temperature–25°~ +90°–25°~ +90°–25°~ +90°Protection GradeIP65IP65IP65Lubrication MethodLong-life lubricationLong-life lubricationLong-life lubricationMounting MethodFlangeFlangeFlangeCategory: GearboxTags: AC Servo Motor and DriverTechnical Specifications:Integrated nut design for eliminating axial clearanceWide-span front and rear bearings for high rigidityHigh torsional, radial, and axial load capacitySingle machining process for high coaxialityReduction ratios: 3/4/5/8 (1st stage), 12/15/16/20/25/32/40/64 (2nd stage), 80/100/120/125/160/200/256/512 (3rd stage)Body lengths: 290mm / 334.5mm / 379mmMax radial force: 10000N / 12200N / 20000NMax axial force: 16000N / 21000N / 36000NFull-load efficiency: ≥96% / ≥94% / ≥90%Weight: 17.5kg / 23.5kg / 27.5kgService life: ≥20000 hoursRated input speed: 2500rpm / 2500rpm / 2000rpmMax input speed: 4500rpm / 4500rpm / 5000rpmMotor power: 3000WGear precision: Grade 6 GB/T10095 – 2008Operating temperature: –25°~ +90°Protection grade: IP65Lubrication: Long-life lubricationMounting: Flange
