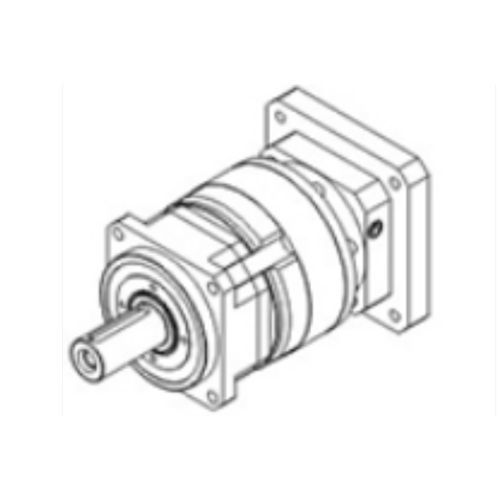

行星减速机 P142 series

同轴空心轴法兰

The output planetary carrier of the reducer adopts an integrated nut design to eliminate axial clearance. The front and rear bearings are widely distributed within the overall housing, forming an ultra-strong integrated structure that ensures high torsional rigidity, excellent radial load-bearing capacity, and outstanding axial load-bearing capacity. The one-time machining process ensures extremely high coaxiality.Reducer Outline Dimensions DiagramMain Technical ParametersGradeFirst StageSecond StageReduction Ratio3/4/5/812/15/16/20/25/32/40/64Body Length (mm)290334.5Max Radial Force (N)1000012200Max Axial Force (N)1600021000Full Load Efficiency≥96%≥94%Weight (kg)16.522.5Service Life ≥20000 hoursRated Input Speed (rpm)25002500Max Input Speed (rpm)45004500Motor Power (W)30003000Gear Precision Grade6 GB/T10095 – 20086 GB/T10095 – 2008Operating Temperature–25°~ +90°–25°~ +90°Protection LevelIP65IP65Lubrication MethodLong-life lubricationLong-life lubricationInstallation MethodFlangeFlangeProduct Category: GearboxTags: AC Servo Motor and DriverTechnical Specifications / FeaturesIntegrated nut design for eliminating axial clearanceWide-span front and rear bearings for high rigidityHigh torsional rigidity and load-bearing capacityOne-time machining for high coaxialityMultiple reduction ratios availableHigh efficiency and long service lifeIP65 protection ratingFlange installation
