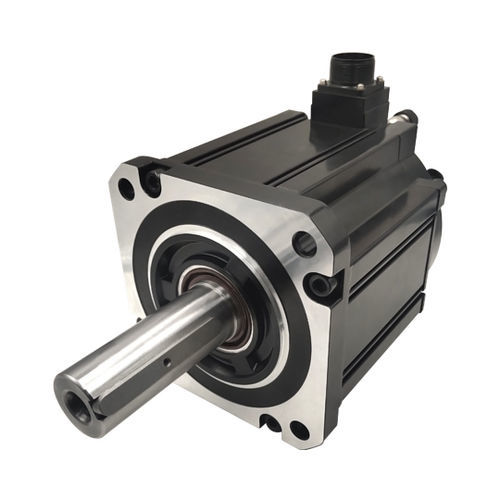

交流伺服电机 180B series

380VIP65高扭矩

Features:17-bit/23-bit absolute value photoelectric encoder, offering high-end and high responsiveness characteristics.High-speed performance: The rated speed can generally reach 3000 rpm, with a maximum speed up to 6000 rpm.Strong overload resistance: Can withstand loads up to three times the rated torque, especially suitable for applications with instantaneous load fluctuations and requiring quick starts.Stable operation: Runs smoothly at low speeds without the step-like running phenomenon typical of stepper motors. Suitable for applications requiring high-speed response.Short dynamic response time for acceleration and deceleration, generally within tens of milliseconds.Significantly reduced heat generation and noise for comfortable operation.Motor Specifications:Motor Model180BST-M18615180BST-M28415180BST-M35015180BST-M48015Rated Power (W)2900440055007500Rated Line Voltage (V)380380380380Rated Line Current (A)10.014.517.823.0Rated Speed (rpm)1500150015001500Rated Torque (Nm)18.628.43548Peak Torque (Nm)547187.596Back EMF (V/1000min)137.5153172170Torque Constant (N.m/A)1.861.951.982.09Rotor Inertia (kg·m²)4.4×10⁻⁶6.6×10⁻⁶10.2×10⁻⁶14.6×10⁻⁶Rotor Inertia with Brake (kg·m²)5.9×10⁻⁶8.0×10⁻⁶11.0×10⁻⁶15.6×10⁻⁶Winding (Phase) Resistance (Ω)1.10.90.620.42Winding Inductance (mH)15.213.910.98.7Electrical Time Constant (ms)13.815.417.515.9Maximum Speed (rpm)2500200020002000Encoder TypePhotoelectric Pulse Encoder / Absolute Value Encoder / Resolver Motor Insulation ClassClass F Protection LevelIP65 Operating EnvironmentAmbient Temperature: –20℃ to 40℃; Relative Humidity: ≤90% (non-condensing) Weight Winding TerminalTerminal Color – U (Red), V (Yellow), W (Blue), PE (Green-Yellow) Quantity of Output Wires4 Incremental Encoder Connector (15-pin)Terminal Numbers: 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 1Terminal Leads: 5V, 0V, A+, B+, Z+, A-, B-, Z-, U+, V+, W+, U-, V-, W-, PE Absolute Value Encoder Connector (7-pin)Terminal Numbers: 2, 3, 4, 6, 7, 10Terminal Leads: E-, E+, SD-, 0V, SD+, +5V, PE L – Without Brake176200237283L – With Brake224248285331Shaft Diameter LR7979113113Shaft Diameter S35(-0.01 – 0)35(-0.01 – 0)42(0 – 0.016)42(0 – 0.016)Keyway Length QK60609090Keyway Width W10101212Shaft End Thread MM12 Depth 25 Technical Specifications:Series: 180B SeriesVoltage: 380VEncoder: 17-bit/23-bit absolute value photoelectric encoderRated Speed: up to 3000 rpm (max 6000 rpm)Overload Capacity: up to 3 times rated torqueProtection: IP65Insulation: Class FOperating Temperature: –20℃ to 40℃Relative Humidity: ≤90% (non-condensing)
