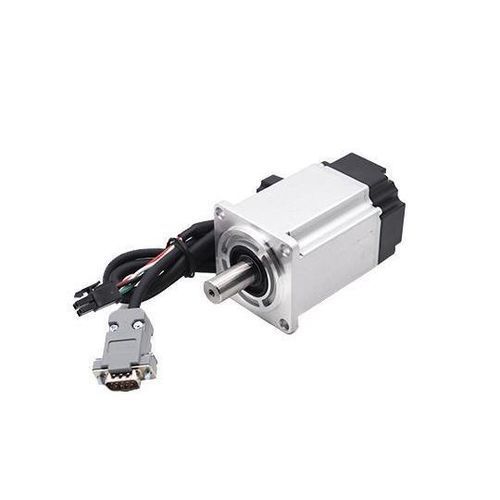

交流伺服电机 60B series

220伏带编码器不锈钢

Features:• 17-bit/23-bit absolute photoelectric encoder, offering high-end and high responsiveness.• Speed: Excellent high-speed performance, typical rated speed up to 3000 rpm, maximum speed up to 6000 rpm.• Adaptability: Strong overload resistance, can withstand loads up to three times the rated torque, especially suitable for applications with instantaneous load fluctuations and requiring rapid start.• Stability: Smooth operation at low speeds, no stepper-like running phenomenon at low speeds. Suitable for high-speed response requirements.• Timeliness: Short dynamic response time for motor acceleration and deceleration, generally within tens of milliseconds.• Comfort: Significantly reduced heat and noise.ModelVoltage (AC)Current (A)Torque (Nm)Weight (kg)Body Length (mm)60BST-C00630-2B12201.60.64Without brake74.560BST-C00630-2B1-Z2201.60.64With brake9860BST-C01330-2B12202.61.27Without brake9360BST-C01330-2B1-Z2202.61.27With brake116.5Motor Specifications:Motor Model60BST-CO0630-2B160BST-CO0630-2B1-Z60BST-CO1330-2B160BST-CO1330-2B1-ZRated Voltage (V)220220220220Rated Power (W)200200400400Rated Current (A)1.61.62.62.6Rated Torque (Nm)0.640.641.271.27Rated Speed (rpm)3000±10%3000±10%3000±10%3000±10%Max Speed (rpm)3600±10%3600±10%3600±10%3600±10%Line Back EMF Constant (rpm/V)25253131Line Resistance (Ω)5.85.84.054.05Line Inductance (mH)9.89.86.56.5Rotor Inertia (10^3 kg·m^2)0.280.280.520.52Torque Constant (Nm/A)0.40.40.490.49Electrical Time Constant (ms)1.691.691.61.6BrakeWithout brakeWith brakeWithout brakeWith brakeBody Length (mm)74.59893116.5Outline Drawing:Encoder: 17-bit/23-bit absolute photoelectric encoderRated voltage: 220V ACRated power: 200W/400WRated current: 1.6A/2.6ARated torque: 0.64Nm/1.27NmRated speed: 3000±10% rpmMax speed: 3600±10% rpmBrake option: With or without brakeBody length: 74.5mm to 116.5mm depending on model
