交流伺服电机 40
220伏带编码器不锈钢

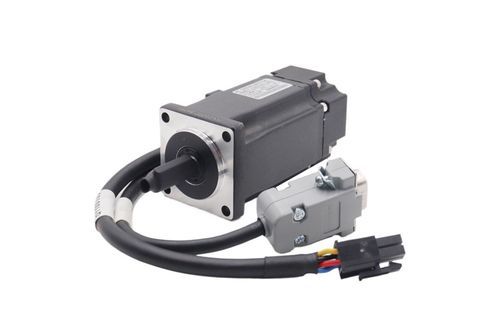

交流伺服电机 - 40 - Shanghai Siheng Motor Co., Ltd - 220伏 / 带编码器 / 不锈钢
交流伺服电机 - 40 - Shanghai Siheng Motor Co., Ltd - 220伏 / 带编码器 / 不锈钢
交流伺服电机 - 40 - Shanghai Siheng Motor Co., Ltd - 220伏 / 带编码器 / 不锈钢 - 图像 - 2
交流伺服电机 - 40 - Shanghai Siheng Motor Co., Ltd - 220伏 / 带编码器 / 不锈钢 - 图像 - 3
交流伺服电机 - 40 - Shanghai Siheng Motor Co., Ltd - 220伏 / 带编码器 / 不锈钢 - 图像 - 4
添加到我的收藏夹
添加到产品对比表

产品规格型号

类型
交流
电压
220伏
构造
永磁, 不锈钢, 带编码器
防护指数
IP54
极数
10极
其他特性
闭合回路
功率

100 W
(0.14 hp)

最少: 100 W
(0.14 hp)

最多: 100 W
(0.14 hp)

强度

1.39 A

最少: 1.39 A

最多: 1.39 A

扭矩

0.16 Nm, 0.32 Nm, 0.64 Nm
(0.11801 ft.lb, 0.23602 ft.lb, 0.47204 ft.lb)

最少: 0.32 Nm
(0.23602 ft.lb)

最多: 1.1 Nm
(0.811318 ft.lb)

旋转速度

3,000 rpm
(18,849.5559 rad.min-1)

最少: 3,000 rpm
(18,849.5559 rad.min-1)

最多: 6,500 rpm
(40,840.7045 rad.min-1)

直径

40 mm
(1.57 in)

最少: 40 mm
(1.57 in)

最多: 40 mm
(1.57 in)

温度

最少: -20 °C
(-4 °F)

最多: 50 °C
(122 °F)

产品介绍

Technical Parameters Technical Specifications Motor Dimension Driver Dimension Standard wiring diagram Position control mode 2.2.2 Speed/Torque Mode Wiring Diagram Product Category: AC Servo Motor and DriverTags: Brushless motor, Closed-loop stepper motor, DC servo motor, Motor driver, PM stepper motor, Stepper motor Key Features / Technical Specifications:Series: 40 SeriesType: AC Servo MotorBrushless motorClosed-loop stepper motor compatibleDC servo motor compatibleIncludes motor driverPM stepper motor compatibleDetailed technical drawings and wiring diagrams available (see images above)
