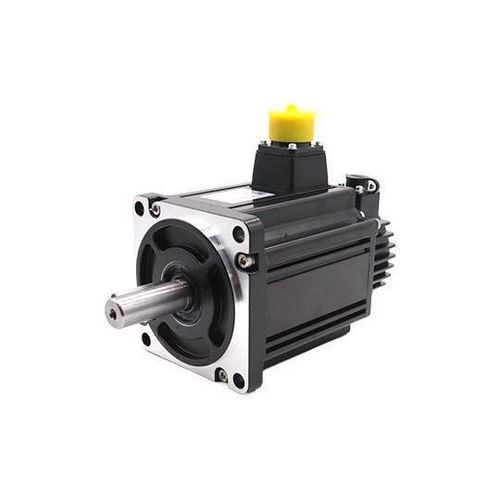

交流伺服电机 130B series

380V带制动装置IP65

Features:17-bit/23-bit absolute photoelectric encoder, offering high-end and high responsiveness.Speed: Excellent high-speed performance, typical rated speed up to 3000 rpm, maximum speed up to 6000 rpm.Adaptability: Strong overload resistance, can withstand loads up to three times the rated torque, especially suitable for applications with instantaneous load fluctuations and requiring rapid start.Stability: Smooth low-speed operation, no stepper-like running at low speeds, suitable for high-speed response requirements.Timeliness: Short dynamic response time for motor acceleration and deceleration, generally within tens of milliseconds.Comfort: Significantly reduced heat and noise.Product Specifications:ModelVoltage (AC)Current (A)Torque (Nm)Weight (kg)Length (mm)130BS0850C3-Standard3803.1––130130BS0850C3-With Brake Z3803.1––155.5130BS01300C3-Standard3805.1––146130BS01300C3-With Brake Z3805.1––171.5130BS01800C3-Standard3806.3––164130BS01800C3-With Brake Z3806.3––189.5130BS02300C3-Standard3808.5––186130BS02300C3-With Brake Z3808.5––211.5Motor Specifications (Standard Series):Range130B51100C2-17D/17N130B50850C3-17D/17N130B51300C2-17D/17N130B51300C3-17D/17NRated Power (W)110085013001300Rated Voltage (V)220380220380Rated Current (Arms)6.03.17.75.1Peak Current (Arms)18.59.523.715.6Rated Torque (Nm)5.255.418.288.28Peak Torque (Nm)15.7516.2324.8424.84Rated Speed (rpm)2000150015001500Max Speed (rpm)4000300030003000Back EMF (V/krpm)5110863100Torque Constant (Nm/A)0.881.751.081.62Line Resistance (Ω)0.854.00.792.0D-axis Inductance (mH)4.417.64.710.8Q-axis Inductance (mH)5.421.45.913.4Electrical Time Constant (ms)10.48.811.910.8Motor Specifications (With Brake):Motor Parameter130BS1800C2-17D/17N130BS1800C3-17D/17N130BS2300C2-17D/17N130BS2300C3-17D/17NRated Power (W)1800180023002300Rated Voltage (V)220380220380Rated Current (Arms)9.86.312.48.5Instantaneous Max Current (Arms)30.219.238.426.2Rated Torque (Nm)11.4611.4614.6414.64Instantaneous Max Torque (Nm)34.3834.3843.9243.92Rated Speed (rpm)1500150015001500Peak Speed (rpm)3000300030003000Back EMF (V/krpm)6810767103Torque Constant (Nm/A)1.171.821.21.72Line Resistance (Ω)0.621.560.420.99D-axis Inductance (mH)3.38.22.65.9Q-axis Inductance (mH)4.110.33.17.2Electrical Time Constant (ms)10.710.512.411.9Rotor Inertia23.7 (with brake 25.7)31.2 (with brake 33.2)Mass (kg)8.0 (with brake 9.5)10.0 (with brake 11.5)Length (mm)164 (with brake 189.5)186 (with brake 211.5)Pole Pairs10Encoder Lines17D (single-turn)/17N (multi-turn)Insulation ClassF (155°C)Protection LevelIP65Mechanical Specifications:SpecificationStandard ModelWith BrakeRotor Inertia (×10⁻³kg·m²)12.1/17.514.1/19.5Weight (kg)5.2/6.66.7/7.8Length (mm)130/146155.5/171.5General Specifications:ItemSpecificationPole Pairs10Encoder Type17D (single-turn)/17N (multi-turn)Insulation ClassF (155°C)Protection LevelIP65Series: 130B SeriesVoltage: 380V ACEncoder: 17-bit/23-bit absolute valuePole pairs: 5 pairs (10 poles)Protection: IP65Insulation: Class F (155°C)
