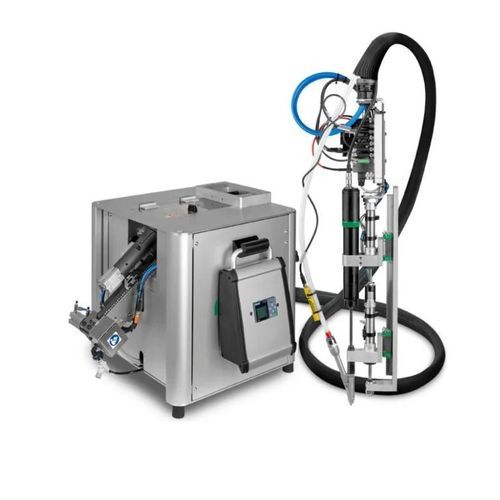

自动螺丝固定设备 MCA EasyDriver EDS

用于螺纹装配电动气动

Tightening module with automatic screw feeding is ideal for assembly large sets of same screws. Plug & Play solution, ready and tested to be integrated into production systems such as assembly lines, manipulators, electric Cartesian axes, robots, collaborative robots and to obtain complete and autonomous tightening cycles with a simple external start. MCA module consists of:

• The screw feeder ED S feeder has a segment conveyor inside the tank that loads, aligns and sends the screws to an inclined accumulator, exploiting the principle of gravity. The absence of vibration therefore guarantees maximum silence as well as preserving the characteristics of the screws and ensuring high quality assembly.

Has integrated:

– PLC

– Modbus TCP/IP protocol

– EDMI Interface web server for remote connection to the tightening system

- Filter-Regulator-Lubricator unit

• NUTRUNNER MOTOR: pneumatic or electric, for any need for torque, speed and type of monitoring, torque or torque/angle/time control as well as programming, analysis, of the tightening cycle with important advantages in precision and operational flexibility

• FASTENING SLIDE: to choose from many light and compact models for any layout and approach stroke to the tightening points, even from the bottom to the top on very closed centr-to-centre distances

• SCREW RETAINING HEAD: always customized to tighten any type of screw, anywhere and without risk of screws loss inside components thanks to mechanical screw retention The system provides a perfect automatic approach stroke to the part being assembled and tightening cycle is managed by integrated PLC which relates to factory systems (Industry 4.0) and can be managed remotely. It interacts with various devices i.e Bar code reader, conveyor belt, workpiece clamping jig activation/deactivation systems, signalling and monitoring mechanism such as LEDs, part counters, light towers.

The ED S – Silent Feeder screw feeder can be combined with the DUST CLEANER screw cleaning device: an additional accessory available on request, essential for removing dust and fine particles from screws in automatic tightening systems. When correctly positioned in the production layout, it can speed up screw feeding times to as little as 0.3 seconds.
