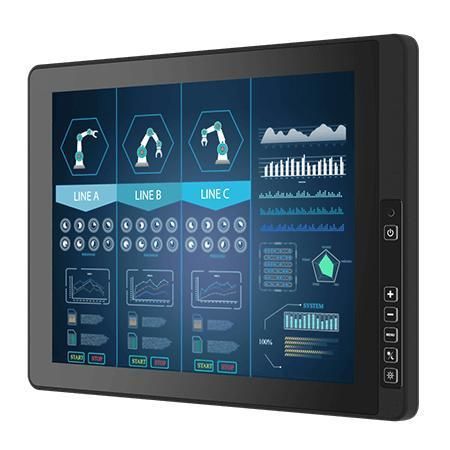

多点触摸屏式显示器 R15L100-67C3-P(HB)感应电容5线电阻式触摸屏工业
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 所用技术
- 多点触摸屏式, 感应电容, 5线电阻式触摸屏
- 用途
- 工业, 用于工业机器, 用于车辆
- 显示器尺寸
- 15"
- 分辨率
- 1024 x 768
- 安装方式
- VESA安装
- 其他特性
- 高亮度, 铝制, 无风扇, 大温度范围, 密封, 防腐蚀, IP67
- 使用温度
最少: -10 °C
(14 °F)最多: 55 °C
(131 °F)
产品介绍
概述
G-WIN IP67 系列 15英寸 P-CAP 工业显示器 R15L100-67C3-P(HB)。采用边到边真平面设计，适用于重型车辆和工业现场。IP67 密封机箱、光学贴合选项和防腐处理铝合金外壳可减少液体渗入并提升耐用性。无风扇被动散热与 9-36 V 宽电压输入支持低噪运行与灵活安装。
主要特性
认证
特性 / 规格
G-WIN IP67 系列 15英寸 P-CAP 工业显示器 R15L100-67C3-P(HB)。采用边到边真平面设计，适用于重型车辆和工业现场。IP67 密封机箱、光学贴合选项和防腐处理铝合金外壳可减少液体渗入并提升耐用性。无风扇被动散热与 9-36 V 宽电压输入支持低噪运行与灵活安装。
主要特性
- 15 英寸面板，1024 x 768 分辨率，1000 尼特
- P-cap 多点触控，光学贴合（默认）
- 可选：真平面 5 线电阻式触控或防反射保护玻璃
- 整机 IP67 防尘防水，支持 VESA 安装
- 铝压铸外壳并经防腐处理
- 内置环境光传感器与 Day/Night 模式
- 无风扇被动冷却设计
- 工作温度 -10 至 55°C（可选智能加热器扩展至 -40 至 70°C）
- 宽电压输入 9–36 V DC（带隔离），M12 防水电源接口
认证
- IP67
- CE
- FCC
特性 / 规格
- Display - Size: 15.0 inches
- Display - Touch / Glass: Projected Capacitive Multi Touch Screen Bonding With Panel (Default); True Flat Resistive Touch Screen Bonding With Panel (Optional); True Flat Protection Glass Bonding With Panel (Optional)
- Display - Resolution: 1024 x 768
- Display - Panel Brightness: 1000.0 nits
- Display - Contrast Ratio: 2000:1
- Display - View Angles: 88,88,88,88
- Display - Display Color: 16.2M Colors
- Display - Active Area: 304.1 x 228.1 mm
- Mechanical - Dimension: 379.4 x 278.4 x 58 mm
- Mechanical - Weight: 3.8 kg
- Mechanical - Mounting: VESA Mount
- Mechanical - Enclosure: Aluminum Housing; Pre finish: Surtec 650, Type II, Class 3 Coating; Polyester powder coating
- Mechanical - Cooling System: Fanless design (passive cooling)
- Environment - Operating Humidity: 10% to 90% RH, Non-Condensing
- Environment - Operating Temperature: -10°C to 55°C; -40°C to 70°C (with intelligent heater)
- Environment - Storage Temperature: -30°C to 70°C
- Environment - Shock: MIL-STD-810G Method 516.6 Procedure I
- Environment - Vibration: MIL-STD-810G Method 514.6 Procedure I
- Environment - IP rating: IP67
- Certification: CE, FCC
- IO Ports - USB Port: 1x M12 type connector for Touchscreen via USB signal
- IO Ports - Serial Port: 1x M12 type connector for Touchscreen via RS232 signal (Optional); 1x M12 type connector for RS232 Remote Control (Optional)
- IO Ports - Video: 1x M12 type connector for VGA input; 1x Waterproof connector for HDMI input
- IO Ports - Indicator: 1x LED Indicator for power; 1x LED Indicator for lock/unlock status
- IO Ports - Power Input: 1x M12 waterproof connector for 9~36V DC
- Control - Button: 1x Power key; 1x + key to increase brightness; 1x - key to decrease brightness; 1x Menu key (auto or manual brightness adjustment); 1x Day/Night Mode button; 1x LED indicator brightness adjustment button; 1x Ambient Light sensor
- Accessory - Included: External open wire Power cable with waterproof connector; External USB cable with waterproof connector for Touch; External VGA cable with waterproof connector; External HDMI cable with waterproof connector; Waterproof caps; VESA screws
- Accessory - Optional: 100~240V AC to DC 50W Adapter with power cord (Optional); External RS232 cable with waterproof connector for Remote Control (Optional)
- Ordering Information - Options: R15L100-67C3-R(HB) for Resistive Touch (Optional); R15L100-67C3-G(HB) for Anti Reflective Protection Glass (Optional)
