机械夹紧元件 RLK 402 TC

轴多头高精度

产品概述

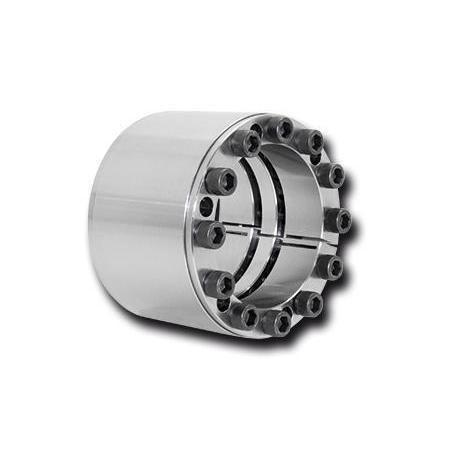

胀紧套 RLK 402 TC：用于实现轮毂在轴上无间隙固定的内部夹紧连接。双开口设计可将轮毂同轴居中，适用于高扭矩传递的重载工况。

产品特点

• 将轮毂居中到轴上。双开口确保高精度的同心度
• 可多次组装
• 高传递扭矩（页面数值）
• 适用于重载应用
• 夹紧过程中轮毂与轴之间无轴向位移
• 高精度加工质量
• 可传递扭矩：50 500 Nm 至 1 701 000 Nm
• 适用轴径范围：130 mm 至 600 mm

Webshop / 产品型号及参数（表）
Product name; Article number; Weight [kg]; Delivery time; Price/piece in € for orders of at least 1
RLK 402 TC-130 x 180; 4205-130201-TC0000; 9,7; On request; 596,00 €
RLK 402 TC-140 x 190; 4205-140201-TC0000; 10,2; On request; 596,00 €
RLK 402 TC-150 x 200; 4205-150201-TC0000; 10,2; On request; 631,00 €
RLK 402 TC-160 x 210; 4205-160201-TC0000; 11,4; On request; 631,00 €
RLK 402 TC-170 x 225; 4205-170201-TC0000; 17,1; On request; 700,00 €
RLK 402 TC-180 x 235; 4205-180201-TC0000; 18,0; On request; 786,00 €
RLK 402 TC-190 x 250; 4205-190201-TC0000; 20,8; On request; 935,00 €
RLK 402 TC-200 x 260; 4205-200201-TC0000; 21,9; On request; 1.132,00 €
RLK 402 TC-220 x 285; 4205-220201-TC0000; 25,5; On request; 1.331,00 €
RLK 402 TC-240 x 305; 4205-240201-TC0000; 27,9; On request; 1.331,00 €
RLK 402 TC-260 x 325; 4205-260201-TC0000; 30,3; On request; 1.431,00 €
RLK 402 TC-280 x 355; 4205-280201-TC0000; 45,6; On request; 2.101,00 €
RLK 402 TC-300 x 375; 4205-300201-TC0000; 50,7; On request; 2.252,00 €
RLK 402 TC-320 x 405; 4205-320201-TC0000; 66,5; On request; 2.654,00 €
RLK 402 TC-340 x 425; 4205-340201-TC0000; 63,8; On request; 2.825,00 €
RLK 402 TC-360 x 455; 4205-360201-TC0000; 79,8; On request; 2.846,00 €
RLK 402 TC-380 x 475; 4205-380201-TC0000; 79,8; On request; 3.074,00 €
RLK 402 TC-400 x 495; 4205-400201-TC0000; 91,0; On request; 3.312,00 €
RLK 402 TC-420 x 515; 4205-420201-TC0000; 92,1; On request; 3.428,00 €
RLK 402 TC-440 x 535; 4205-440201-TC0000; 96,6; On request; 3.629,00 €
RLK 402 TC-460 x 555; 4205-460201-TC0000; 103,2; On request; 3.952,00 €
RLK 402 TC-480 x 575; 4205-480201-TC0000; 108,4; On request; 4.235,00 €
RLK 402 TC-500 x 595; 4205-500201-TC0000; 112,5; On request; 4.879,00 €
RLK 402 TC-520 x 615; 4205-520201-TC0000; 117,3; On request; 5.947,00 €
RLK 402 TC-540 x 635; 4205-540201-TC0000; 121,1; On request; 6.412,00 €
RLK 402 TC-560 x 655; 4205-560201-TC0000; 125,6; On request; 7.662,00 €
RLK 402 TC-580 x 675; 4205-580201-TC0000; 134,1; On request; 8.914,00 €
RLK 402 TC-600 x 695; 4205-600201-TC0000; 132,9; On request; 10.081,00 €

可用文档

• 产品数据表 RLK 402 TC（PDF）
• RLK 402 与 RLK 402 TC 安装说明（PDF）
• 提供 3D-CAO 下载

特性 / 技术规格

• 型号：RLK 402 TC
• 类型：双开口胀紧套（内部夹紧元件）
• 主要用途：实现轮毂与轴的无间隙同心夹紧
• 设计特点：双开口以提高 centration 精度
• 可重复组装/拆卸
• 轴向行为：夹紧过程中无轴向相对位移
• 应用：重载工况
• 可传递扭矩范围：50 500 Nm 至 1 701 000 Nm
• 适用轴径范围：130 mm 至 600 mm
• 产品变体及其物料号、重量和价格见网上商店
