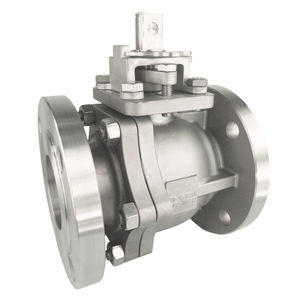

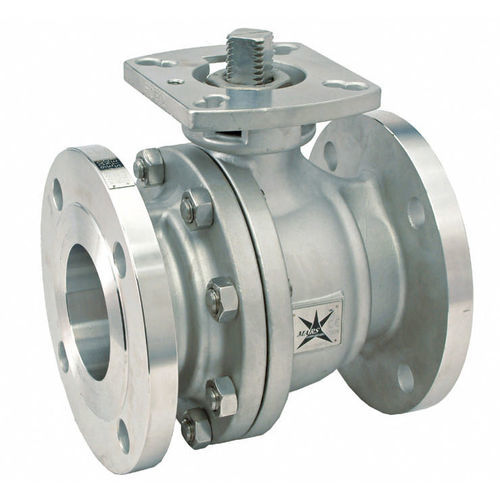

球形阀 90D series

手动法兰法兰安装

概述
Series 90D 是一条由184个型号组成的带法兰球阀系列，提供全通径配置、多个压力等级和阀体材料。阀门以法兰形式供货，并预留 ISO 5211 / DIN 3337 方轴接口以便直接安装执行器。可选耐火（fire‑safe）版本，并可选择带手柄或不带手柄（为执行器安装预留）。

主要特性

• 压力等级：ANSI 300、ANSI 150、PN10/40 与 PN16
• 设计：全通径（full bore）球阀
• 阀体材料：不锈钢（含 CF8M）、碳钢、WCB
• 安装方式：法兰与直接安装；ISO 5211 / DIN 3337 方轴
• 操作方式：可带手柄或不带手柄以便安装执行器
• 尺寸：1/2\"、3/4\"、1\"、1 1/4\"、1 1/2\"、2\"、2 1/2\"、3\"、4\"、6\" 及 184 型号覆盖的中间尺寸
• 可选耐火认证版本

版本 / 选项

• V90D-2F 系列：法兰型，ANSI 额定；提供耐火版本

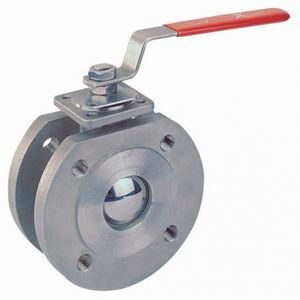

• 手柄选项：带手柄或不带手柄（用于直接驱动）

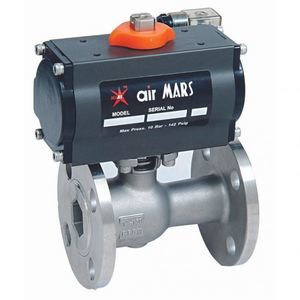

• 驱动：预留 ISO 5211 / DIN 3337 方轴以便直接安装执行器
• 材料与压力等级可按 SKU 选择

代表性产品表（摘录）
SKU | 尺寸 | 流通孔 | 阀体 | 设计 | 安装 | 价格 (GBP)
V90D-2F-1-2IN-STAINLESS-STEEL-W-O-HANDLE | 1/2\" | Full | Stainless Steel | Full | Flanged, direct mount | £89.94
V90D-2F-1-2IN-STAINLESS-STEEL-W-HANDLE | 1/2\" | Full | Stainless Steel | Full | Flanged, direct mount | £92.55
V90D-2F-1-2IN-CARBON-STEEL-W-O-HANDLE | 1/2\" | Full | Carbon Steel | Full | Flanged, direct mount | £81.16
V90D-2F-1-2IN-CARBON-STEEL-W-HANDLE | 1/2\" | Full | Carbon Steel | Full | Flanged, direct mount | £83.78
V90D-2F-3-4IN-STAINLESS-STEEL-W-O-HANDLE | 3/4\" | Full | Stainless Steel | Full | Flanged, direct mount | £113.50
V90D-2F-3-4IN-STAINLESS-STEEL-W-HANDLE | 3/4\" | Full | Stainless Steel | Full | Flanged, direct mount | £116.12
V90D-2F-3-4IN-CARBON-STEEL-W-O-HANDLE | 3/4\" | Full | Carbon Steel | Full | Flanged, direct mount | £102.41
V90D-2F-3-4IN-CARBON-STEEL-W-HANDLE | 3/4\" | Full | Carbon Steel | Full | Flanged, direct mount | £104.87
V90D-2F-1IN-STAINLESS-STEEL-W-O-HANDLE | 1\" | Full | Stainless Steel | Full | Flanged, direct mount | £149.07
V90D-2F-1IN-STAINLESS-STEEL-W-HANDLE | 1\" | Full | Stainless Steel | Full | Flanged, direct mount | £151.69
V90D-2F-1IN-CARBON-STEEL-W-O-HANDLE | 1\" | Full | Carbon Steel | Full | Flanged, direct mount | £134.44
V90D-2F-1IN-CARBON-STEEL-W-HANDLE | 1\" | Full | Carbon Steel | Full | Flanged, direct mount | £137.06
V90D-2F-1-1-2IN-STAINLESS-STEEL-W-O-HANDLE | 1 1/2\" | Full | Stainless Steel | Full | Flanged, direct mount | £300.45
V90D-2F-1-1-2IN-STAINLESS-STEEL-W-HANDLE | 1 1/2\" | Full | Stainless Steel | Full | Flanged, direct mount | £306.00
V90D-2F-1-1-2IN-CARBON-STEEL-W-O-HANDLE | 1 1/2\" | Full | Carbon Steel | Full | Flanged, direct mount | £254.10
V90D-2F-1-1-2IN-CARBON-STEEL-W-HANDLE | 1 1/2\" | Full | Carbon Steel | Full | Flanged, direct mount | £259.80
V90D-2F-2IN-STAINLESS-STEEL-W-O-HANDLE | 2\" | Full | Stainless Steel | Full | Flanged, direct mount | £342.19
V90D-2F-2IN-STAINLESS-STEEL-W-HANDLE | 2\" | Full | Stainless Steel | Full | Flanged, direct mount | £347.73
V90D-2F-2IN-CARBON-STEEL-W-O-HANDLE | 2\" | Full | Carbon Steel | Full | Flanged, direct mount | £289.67
V90D-2F-2IN-CARBON-STEEL-W-HANDLE | 2\" | Full | Carbon Steel | Full | Flanged, direct mount | £295.37
V90D-2F-2-1-2IN-STAINLESS-STEEL-W-O-HANDLE | 2 1/2\" | Full | Stainless Steel | Full | Flanged, direct mount | £534.23
V90D-2F-2-1-2IN-STAINLESS-STEEL-W-HANDLE | 2 1/2\" | Full | Stainless Steel | Full | Flanged, direct mount | £539.77
V90D-2F-2-1-2IN-CARBON-STEEL-W-O-HANDLE | 2 1/2\" | Full | Carbon Steel | Full | Flanged, direct mount | £466.47
V90D-2F-2-1-2IN-CARBON-STEEL-W-HANDLE | 2 1/2\" | Full | Carbon Steel | Full | Flanged, direct mount | £472.16
V90D-2F-3IN-STAINLESS-STEEL-W-O-HANDLE | 3\" | Full | Stainless Steel | Full | Flanged, direct mount | £709.48

技术规格

• 系列名称：Series 90D - 带法兰球阀
• 可用型号：184 个型号（不同尺寸、材料和选项）
• 设计：全通径 / full port
• 压力等级：ANSI 300、ANSI 150、PN10/40、PN16
• 材料：不锈钢（含 CF8M）、碳钢、WCB
• 安装与操作：法兰、直接安装；ISO 5211 / DIN 3337 方轴；带或不带手柄
• 定价：列表中以 GBP 显示各变体价格
