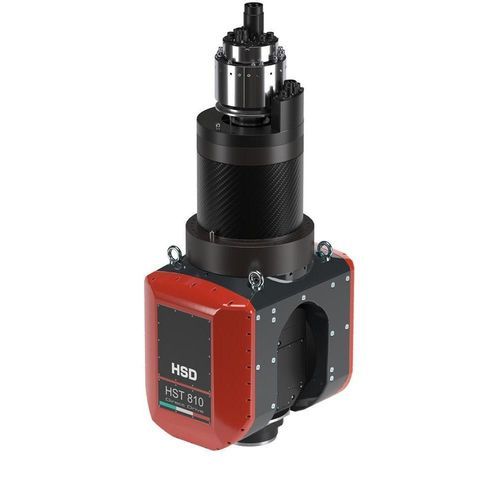

加工设备弯头 HST810 DS

铣刀铣刀机动

产品概述
HST810 DS 是为集成到 CNC 加工中心而设计的 1 轴/2 轴加工头，适用于各种材料和金属的铣削与精加工。其采用直驱（Direct Drive）电机技术及精密测量系统，以实现可重复的角度定位和良好的动态响应。

技术参数
Motor brand: HSD Direct Drive
A Axis Max torque [Nm]: 1.414
C Axis Max torque [Nm]: 1.250
Clamping torque Axis brakes A [Nm]: 4.000
Clamping torque Axis brakes C [Nm]: 4.000
Max. speed Axis A [° / sec]: 180
Max. speed Axis C [° / sec]: 180
Measuring System Accuracy A [arcsec]: 2
Measuring System Accuracy C [arcsec]: 2
A Axis range [°]: ±110
C Axis range [°]: ±360
Weight [kg]: ≈ 650

特性 / 技术规格

• Motor brand: HSD Direct Drive
• A Axis Max torque: 1.414 Nm
• C Axis Max torque: 1.250 Nm
• Clamping torque Axis brakes A: 4.000 Nm
• Clamping torque Axis brakes C: 4.000 Nm
• Max. speed Axis A: 180 °/sec
• Max. speed Axis C: 180 °/sec
• Measuring System Accuracy A: 2 arcsec
• Measuring System Accuracy C: 2 arcsec
• A Axis range: ±110°
• C Axis range: ±360°
• Weight: ≈ 650 kg
