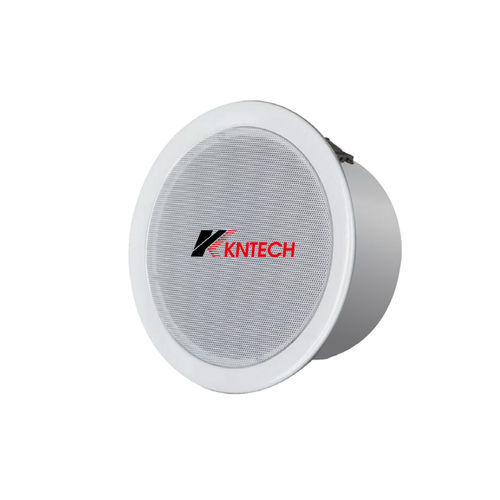

天花板扬声器 KNL9-A-6W

防火商业

Product Overview
Fireproof Ceiling Speaker designed for public address and background music applications, suitable for conference rooms, cafes, churches, entertainment venues, home theaters and similar environments.

Basic Information
Model: KNL9-A-6W
Size: 197*165*98mm
Material: Metal & Fire Rated Metal Rear Cover

Key Features

• Single 12 cm (5") full range cone-type transducer with a smooth on-axis frequency response of 80 Hz to 20 kHz.
• Sound Pressure Level (SPL) of 90 dB on axis at 1 meter with 1 watt input.
• Factory-mounted transformer with easy selectable power tappings: for 100V line - 6W, 3W, 1.5W, 0.8W; for 70V line - 3W, 1.5W, 0.8W, 0.4W.
• Push-in-type connectors for quick cable connection and support for bridge wiring when necessary.

Applications

• Conference rooms
• Cafes
• Churches
• Background music systems
• Entertainment venues
• Home theaters

Caractéristiques / Spécifications techniques

• Model: KNL9-A-6W
• Driver: 12 cm (5") full range cone-type transducer
• Frequency Response: 80 Hz – 20 kHz (on-axis)
• SPL: 90 dB @ 1 m @ 1 W (on-axis)
• Power Tappings (100V line): 6 W, 3 W, 1.5 W, 0.8 W
• Power Tappings (70V line): 3 W, 1.5 W, 0.8 W, 0.4 W
• Connector Type: Push-in connectors (supports bridge wiring)
• Dimensions: 197 × 165 × 98 mm
• Material: Metal body with fire rated metal rear cover
