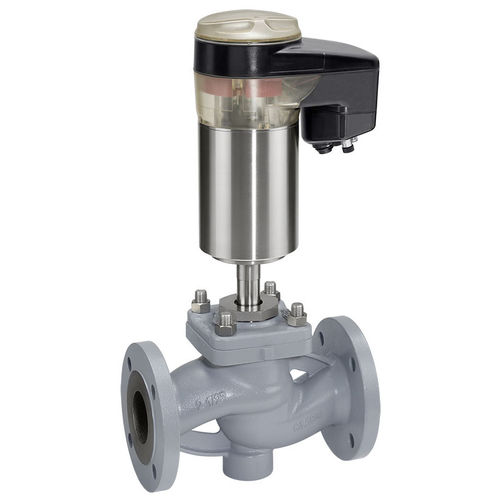

球心截止阀 539 eSyDrive电动制动控制
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 种类
- 球心截止
- 驱动类型
- 电动
- 功能
- 控制, 制动
- 主体材料
- 双法兰
- 应用
- 工业
- 材质
- 不锈钢
- 通道数量
- 2位2通
- 其他特性
- 电机驱动, 集成定位器
- 通径
最多: 100 mm
(3.937 in)最少: 15 mm
(0.591 in)- 压力
最多: 40 bar
(580.2 psi)最少: 0 bar
(0 psi)- 温度
-40 °C, 250 °C
(-40 °F, 482 °F)
产品介绍
Robust globe valve with premium actuator
The GEMÜ 539 eSyDrive is a motorized 2/2-way globe valve with a hollow shaft electric actuator. The eSyDrive hollow shaft actuator can be operated as On/Off or with integrated positioner or process controller. The valve spindle is sealed by a self-adjusting gland packing providing low-maintenance and reliable valve spindle sealing even after a long service life. A wiper ring fitted in front of the gland packing protects the seal against contamination and damage. An integral optical and electrical position indicator is standard.
The GEMÜ 539 eSyDrive is a motorized 2/2-way globe valve with a hollow shaft electric actuator. The eSyDrive hollow shaft actuator can be operated as On/Off or with integrated positioner or process controller. The valve spindle is sealed by a self-adjusting gland packing providing low-maintenance and reliable valve spindle sealing even after a long service life. A wiper ring fitted in front of the gland packing protects the seal against contamination and damage. An integral optical and electrical position indicator is standard.
- Linear or modified equal-percentage control characteristics
- Open/Close function, positioner and process controller
- Actuation force and actuating speed variably adjustable
- Operable via web interface eSy-Web and Modbus TCP
- Extensive functions, such as position feedback, diagnostic functions and opening and closing stroke limitation
