调节阀门 553

球心截止气动手动

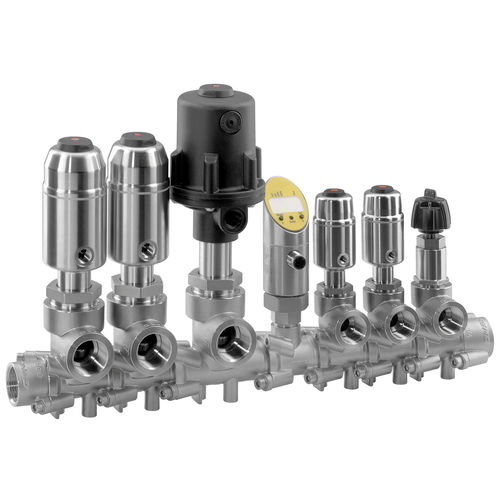

Flexibly combinable diverting valve consisting of various globe valve modules

The modular GEMÜ 553 distribution valve comprises various globe valve modules. These can be equipped with manual pneumatic or motorized actuators. The downstream media is isolated using a PTFE seal. The valve spindle is sealed by a self-adjusting gland packing. This provides a low maintenance and reliable valve spindle seal even after an extended period of operation. The wiper ring that is installed upstream of the gland packing also protects this against contamination and damage. The individual modules can be easily connected using screws.

• Suitable for mixing, distributing and collecting media
• Space-saving modular design
• Several valve and sensor modules can be individually combined
• Reduced plant maintenance times compared with single valves as the complete module can be replaced
• Faster actuator replacement and easily rotatable due to fixing via union nut
• Selection of manual, pneumatic and electromotive actuators available
