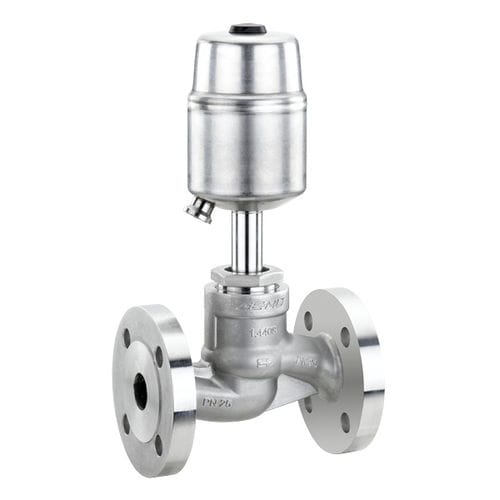

球心截止阀 530气动制动控制
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 种类
- 球心截止
- 驱动类型
- 气动
- 功能
- 控制, 制动
- 介质
- 用于气体
- 主体材料
- 法兰, 座阀
- 应用
- 液体, 用于真空
- 材质
- 不锈钢, PTFE
- 通道数量
- 2位2通
- 其他特性
- ISO, ANSI, 紧凑型, 结实耐用型, ATEX
- 通径
最多: 100 mm
(3.937 in)最少: 15 mm
(0.591 in)- 压力
最多: 40 bar
(580.2 psi)最少: 0 bar
(0 psi)- 温度
最多: 210 °C
(410 °F)最少: -40 °C
(-40 °F)
产品介绍
Globe valve with high-quality stainless steel actuator
The 2/2-way globe valve GEMÜ 530 has a robust, low-maintenance stainless steel piston actuator and is pneumatically operated. The valve spindle is sealed by a self-adjusting gland packing providing low-maintenance and reliable valve spindle sealing even after a long service life. A wiper ring fitted in front of the gland packing also protects the seal against contamination and damage.
Stainless steel actuator resistant to corrosive ambient conditions
The 2/2-way globe valve GEMÜ 530 has a robust, low-maintenance stainless steel piston actuator and is pneumatically operated. The valve spindle is sealed by a self-adjusting gland packing providing low-maintenance and reliable valve spindle sealing even after a long service life. A wiper ring fitted in front of the gland packing also protects the seal against contamination and damage.
Stainless steel actuator resistant to corrosive ambient conditions
- For contact with food in accordance with Regulation (EC) No. 1935/2004
- Extended temperature and pressure range
- Precise actuator design depends on operating pressure
- ATEX optionally available
- Suitable for shut-off and control functions
- Suitable for vacuum up to 20 mbar (a) as standard
