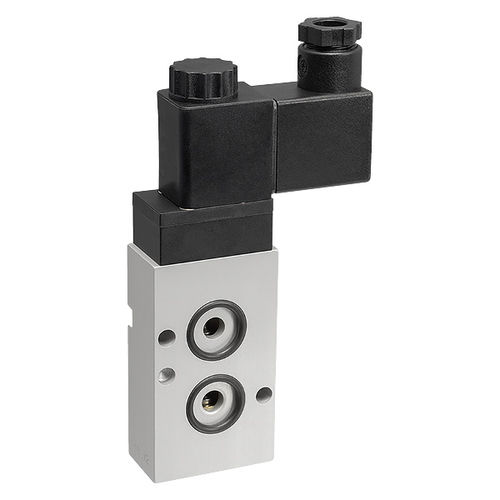

先导式电磁阀 8500双通空气油
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 操控类型
- 先导式
- 轨道/位置
- 双通
- 媒介
- 水, 空气, 油
- 阀体
- 螺纹, Namur 标准, IP65, 铝框架
- 其他特性
- 标准, ATEX, 双效, 提升, 活塞
- 通径
7 mm
(0.276 in)- 电压
最少: 12 V
最多: 230 V
- 温度
最少: -10 °C
(14 °F)最多: 60 °C
(140 °F)- 压力
最少: 2.5 bar
(36.3 psi)最多: 10 bar
(145 psi)
产品介绍
3/2- or 5/2-way pilot valve for direct mounting or battery mounting
The GEMÜ 8500 servo assisted 3/2 or 5/2-way pilot solenoid valve is indirectly controlled. The body is made of aluminium. The plastic encapsulated solenoid actuator is detachable. The piston valve has a soft elastomer seal.
The GEMÜ 8500 servo assisted 3/2 or 5/2-way pilot solenoid valve is indirectly controlled. The body is made of aluminium. The plastic encapsulated solenoid actuator is detachable. The piston valve has a soft elastomer seal.
- Available with NAMUR connection as an option
- Suitable for activating single or double acting pneumatic actuators
- Standard manual override
- Optional installation position
- Solenoid coil universally rotatable
